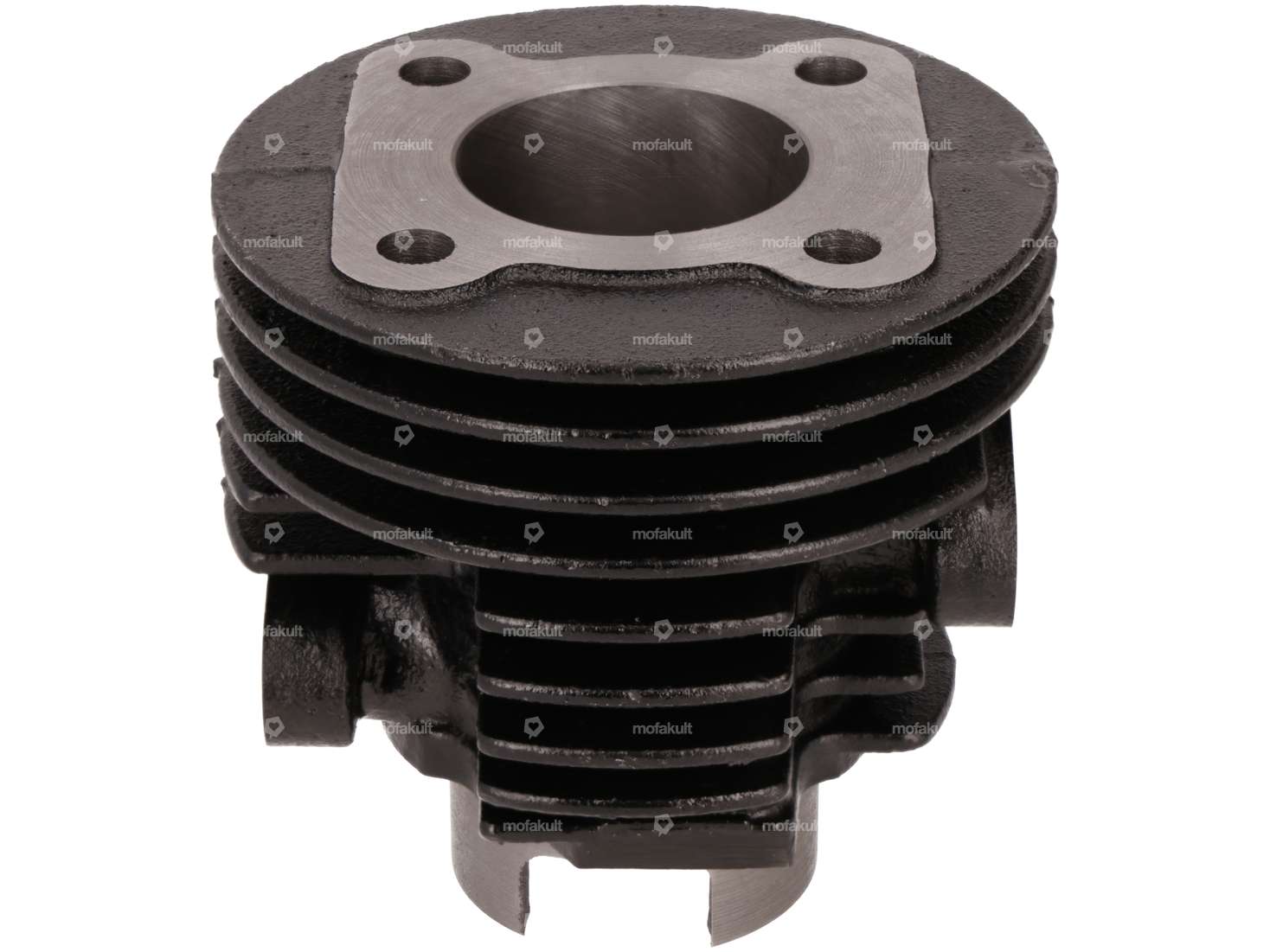

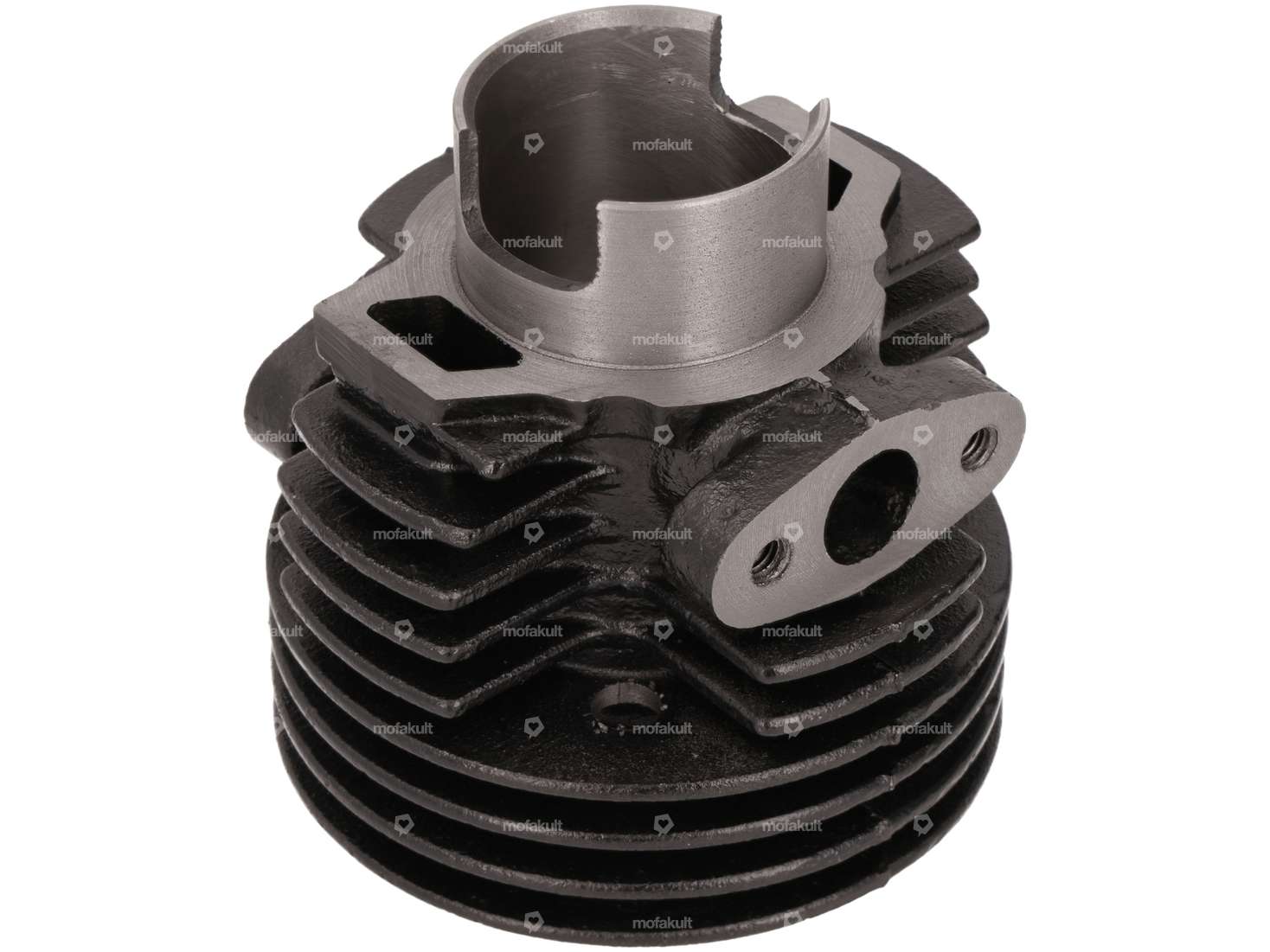

Bladed 38 mm cylinder kit with 10 mm piston pin. This reproduction cylinder has a larger inlet than the original cylinder.
Fits Puch X30 Velux and Puch X30 NG-2AH mopeds.

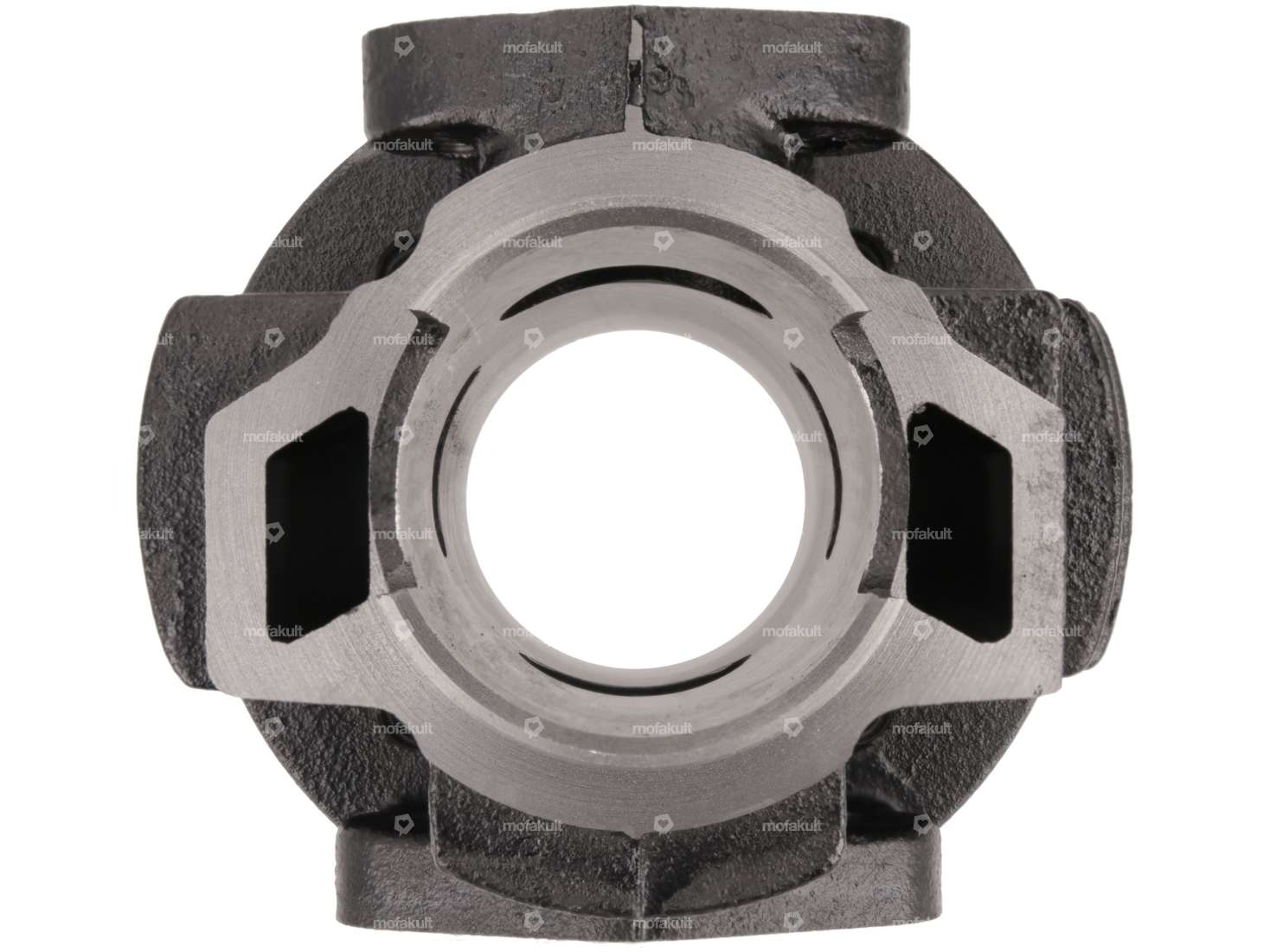

Attention: For Velux engines, the small slot at the sealing surface to the cylinder must be filled to ensure that the cylinder kit is tight.
The Wekem 2K liquid metal, which can be found in the accessories, is recommended for this purpose.

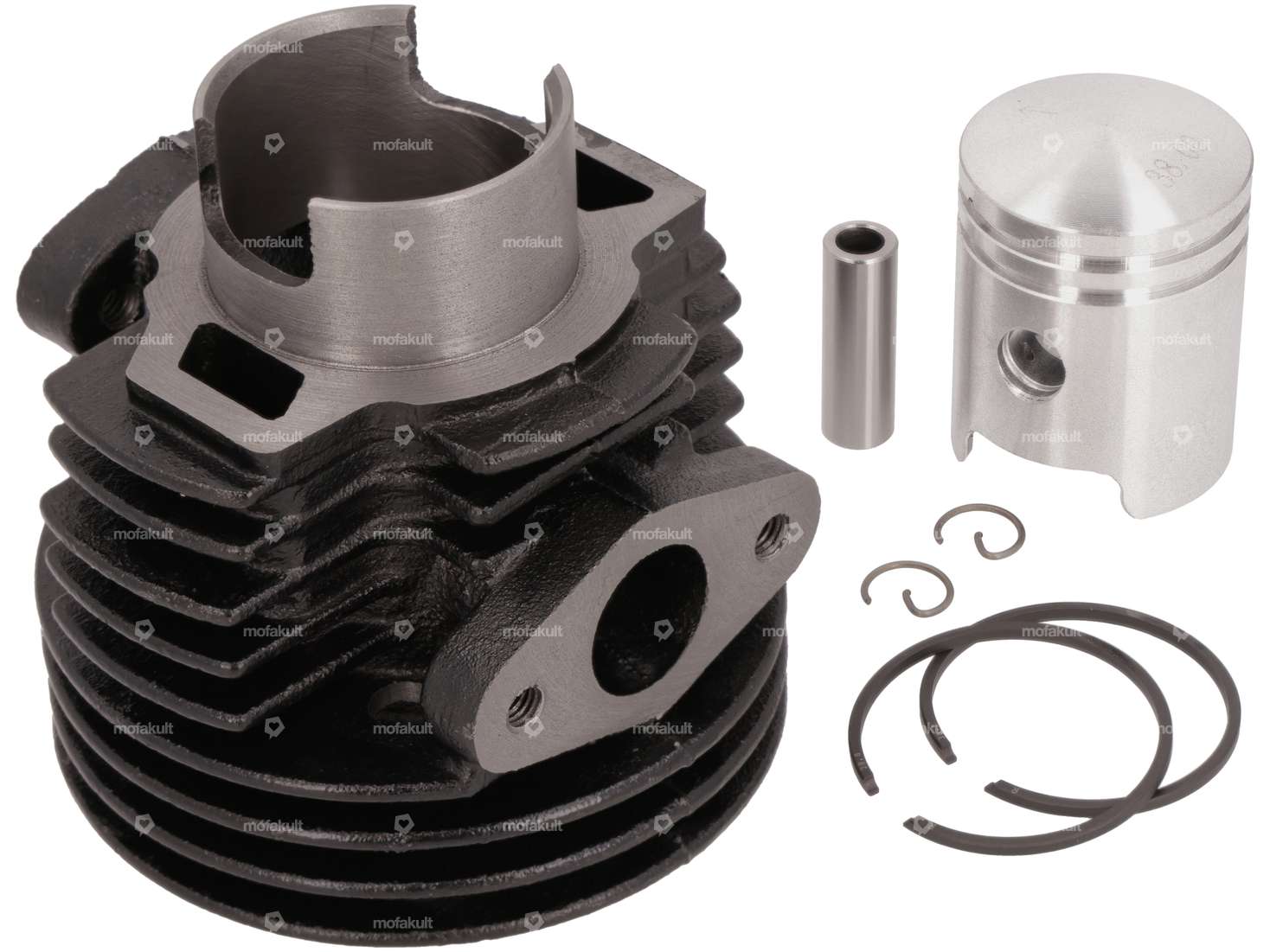

The set includes the following fixed parts:
Nominal diameter: 38 mm · Ø outside piston (A): 37.96 mm · Ø piston pin (B): 10 mm · Compression height (C): 22.3 mm · Curvature (D): 3.6 mm · Total piston height (E): 50 mm · Number of piston rings (F): 2 pcs · Piston ring mold: Rectangular ring · Piston ring impact: Flank safety device (FS) · Piston ring height: 2 mm · Piston weight: 73 g
Hole pattern [mm]: 44 x 44 · Manufacturer: GPO · Material: Gray cast iron · Surface: sandblasted · Displacement: 50 ccm · Crankshaft stroke: 43 mm · Nominal diameter: 38 mm · Thread inlet: M6x1 (standard thread) · Hole spacing inlet: 32 mm · Outlet type: straight · Hole spacing outlet: 42 mm · Thread outlet: M6x1 (standard thread) · Number of fixing points: 4 pcs · Area of application: Tuning
Details
| Material | Gray cast iron |
| Surface | sandblasted |
| Displacement | 50 ccm |
| Crankshaft stroke | 43 mm |
| Nominal diameter | 38 mm |
| Ø piston pin (B) | 10 mm |
| Thread inlet | M6x1 (standard thread) |
| Hole spacing inlet | 32 mm |
| Outlet type | straight |
| Hole spacing outlet | 42 mm |
| Number of fixing points | 4 pcs |
| Thread outlet | M6x1 (standard thread) |
| Hole pattern [mm] | 44 x 44 |
| Camouflaged | No |
| Area of application | Tuning |
Suitable for the following models
| Puch | Z50 (X30 Velux) 2-speed MS, MV, MV50 3-speed VSD, DS, VZ, MC |
