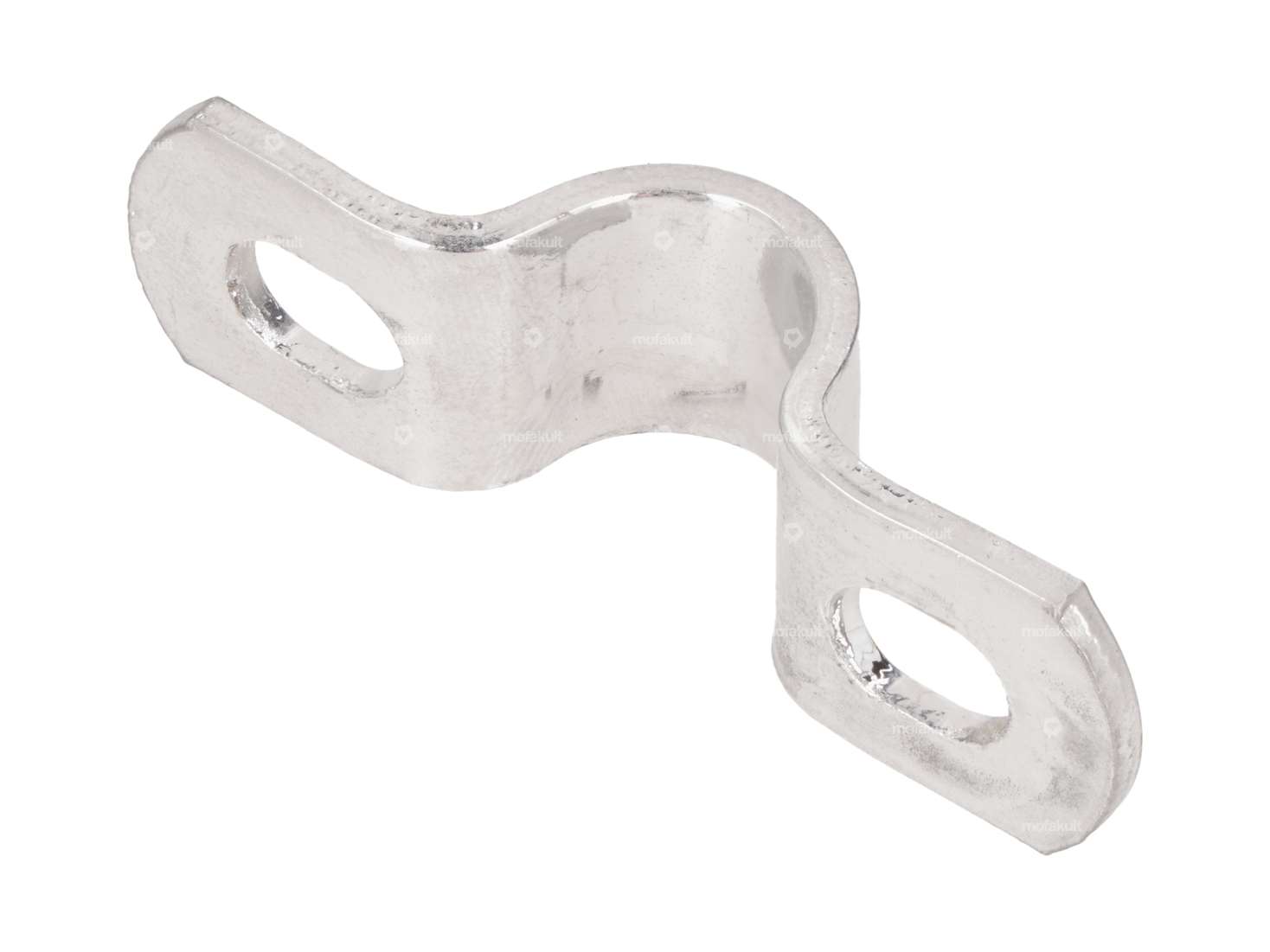

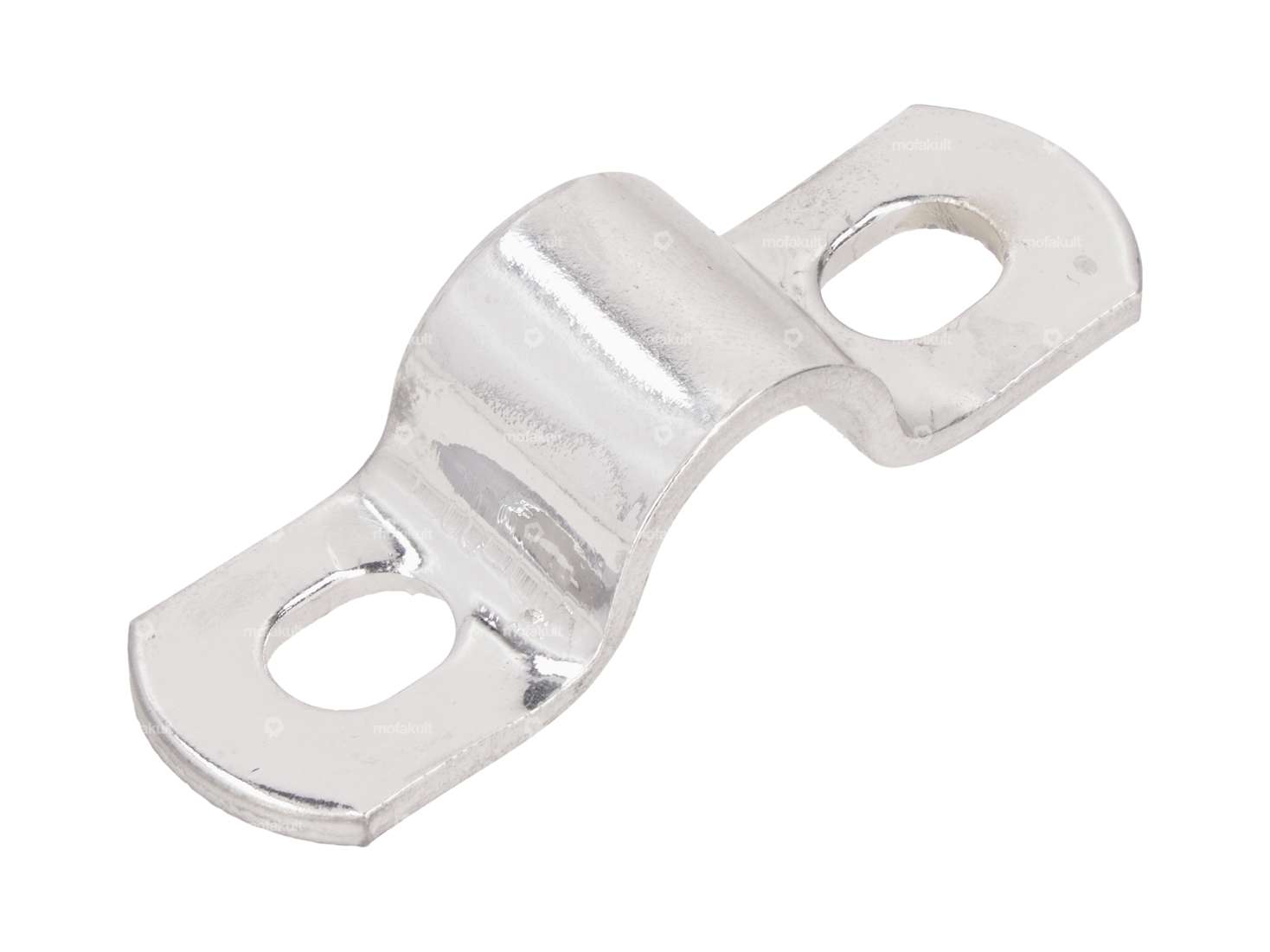

Clamping bracket mudguard arch

15 mm intake manifold | Puch E50

Total height: 54 mm · Material: Aluminum · Camouflaged: Yes · Mounting type: Screws · Ø inside: 14.5 mm · Ø External connection: 20 mm · Total length: 47 mm · Height flange center hole: 43 mm · Hole spacing inlet: 38 mm · Number of fixing points: 2 pcs · Area of application: Tuning

Clutch lever | Puch E50

Area of application: Standard

Front reinforcement / mudguard arch chrome (cheap)

Ø outside: 16 mm · Material: Steel · Surface: chrome-plated · Color: Chrome · Wheel size [inch]: 17 " · Ø mounting hole: 6.2 mm · Distance mudguard - center hole: 207 mm · Distance mudguard - center hole: 242 mm · Wide intake: 128 mm · Outer width: 143 mm · Number of fixing points: 6 pcs · Mounting type: Nuts & bolts · Hole spacing: 35 mm · Total length: 270 mm

Stud bolt M7 x 106 mm (Velux)

Material: Steel · Surface: galvanized (blue) · Total length: 106 mm · Thread type: M7x1 (standard thread) · Thread length: 25 mm

Magura gas cable clamp / deco cable clamp Ø 5 x 6 mm

Manufacturer: Magura · Ø Cable bushing: 1.6 mm · Material: Brass · Material: Steel · Surface: nickel-plated · Number of components: 2 pcs · Ø outside: 5 mm · Thread type: M4x0.7 (standard thread) · Drive: Slot · Total length: 6 mm · Screw head: Lens head · Thread length: 4 mm

Adhesive kit tank black foil plot | Puch X30

Color: black · Consistency: UV-resistant · Consistency: petrol resistant · Rear side texture: Adhesive · Place of use: Tank (+ frame) · Width: 290 mm · Height: 51 mm

Wippermann cranked link 1/2 x 3/16" reinforced (with split pin)

Chain pitch: 1/2" x 3/16" · Chain type: 415H · Manufacturer: Wippermann · Material: Steel · Surface: raw · Chain lock type: Cranked link · Ø bore: 4.25 mm · Ø Pin: 4.17 mm

Rubber cap ignition cover | Puch

Material: Rubber · Ø mounting hole: 3 mm · Ø outside: 54 mm · Height: 5 mm · Total height: 9 mm · Material thickness: 3 mm · Color: black

Gearbox cover (kickstarter) | Puch Maxi

Material: Aluminum · Number of fixing points: 5 pcs
