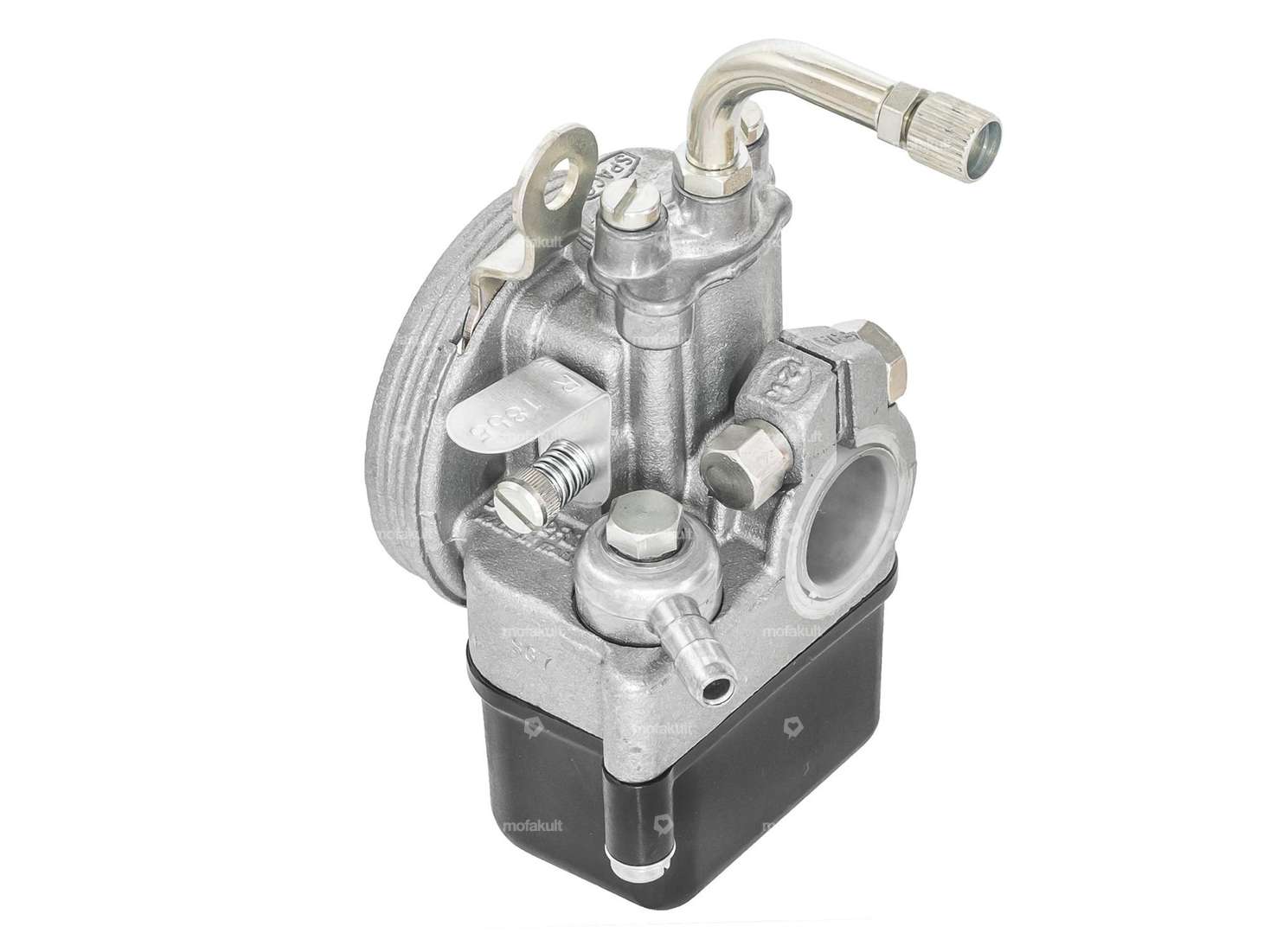

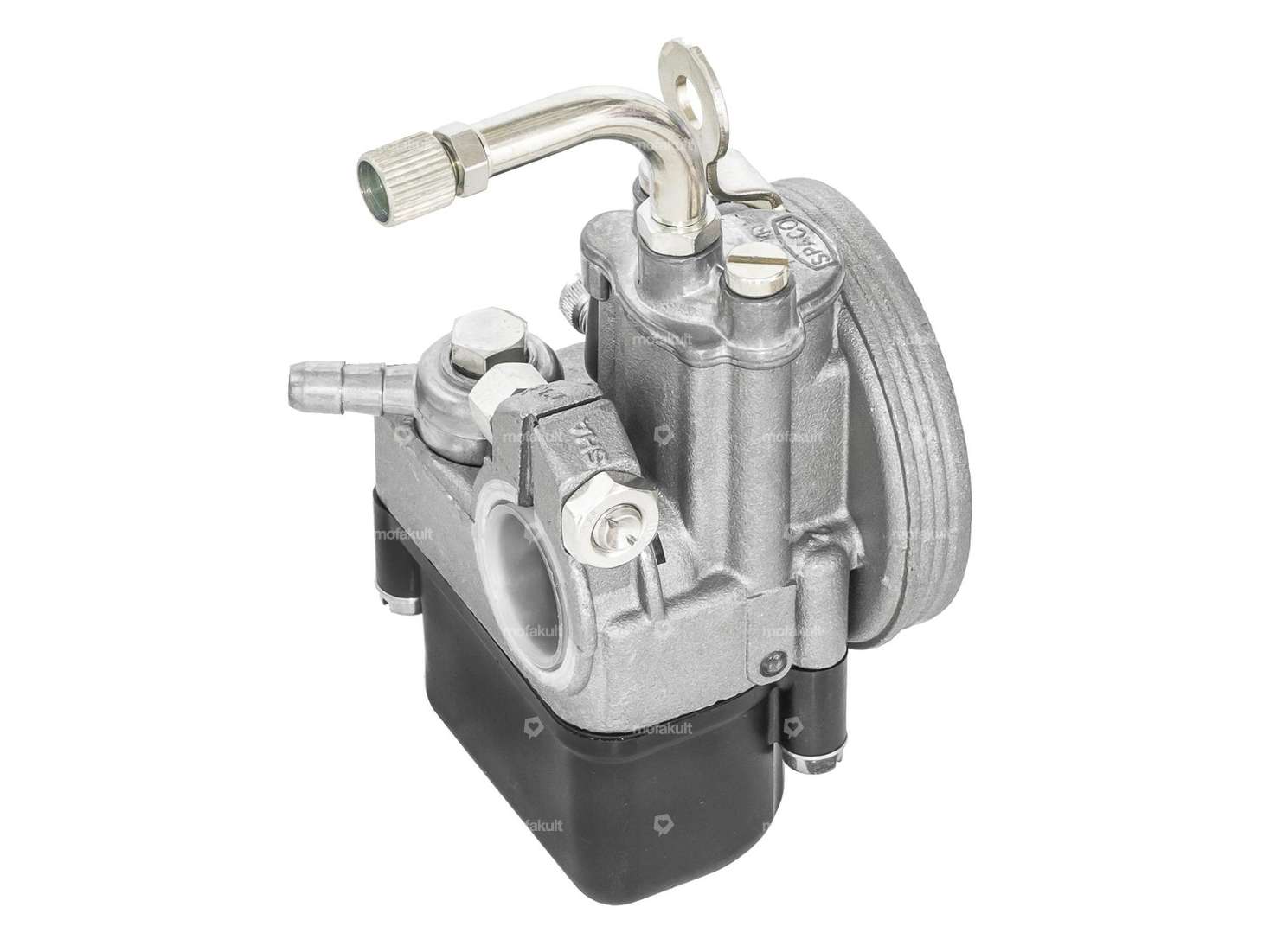

The Dell'Orto 12 / 10 SHA carburetor impresses with its compact design and can be used universally for various mopeds, mopeds and small motorcycles.

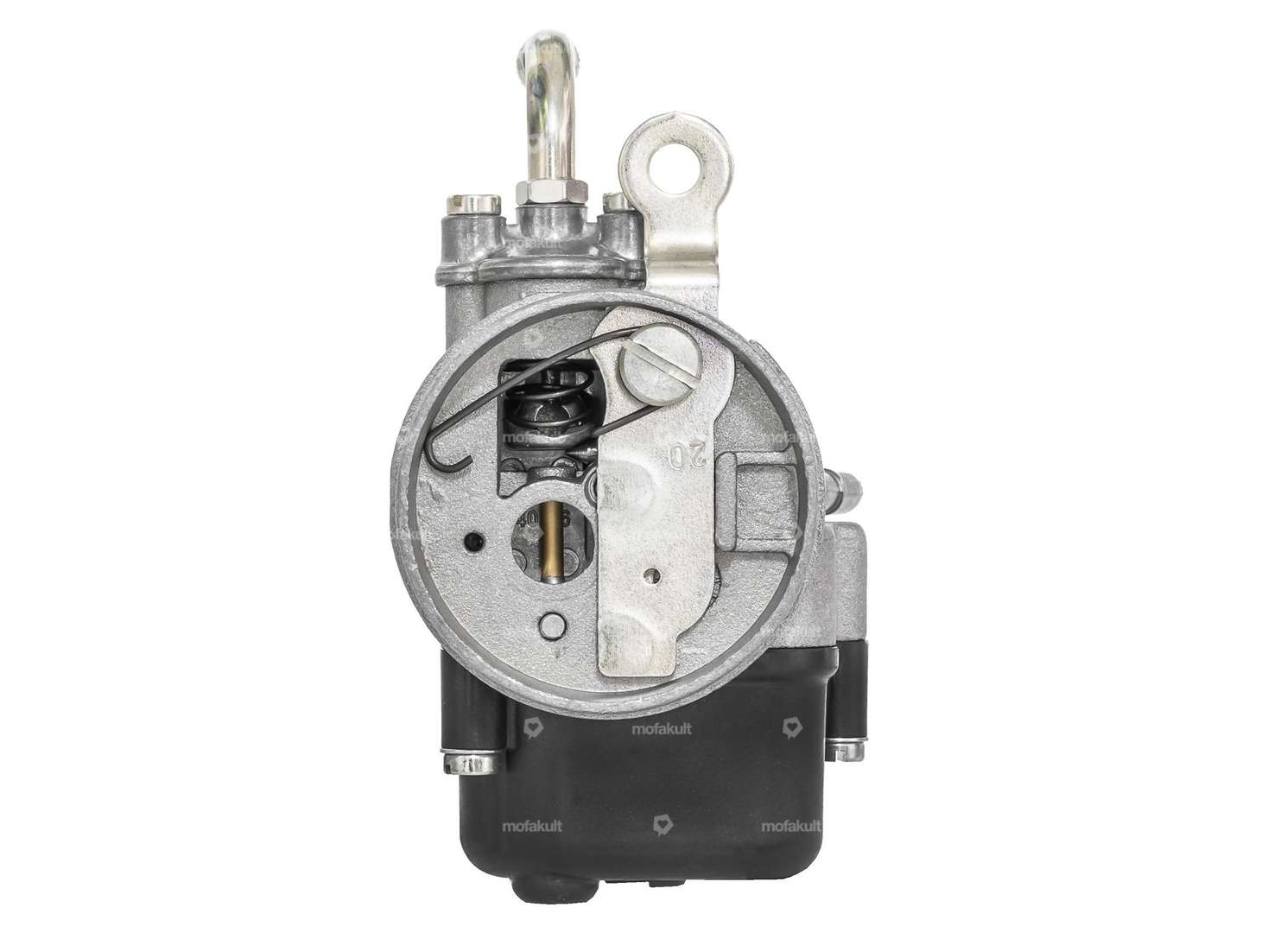

The carburetor has a manually operated choke / starter slide. The starter flap engages by pressing it down and is only returned to its original position by actuating the throttle cable (full throttle).
Carburetor type: SHA type 3 (SHA3)
Main thread size (M5): 37
Inlet connection diameter: 16 mm (or 19 mm after removing the reduction sleeve)
Ø external air filter connection: 50.6 mm
Ø passage on air filter side: 10 mm
Ø passage on intake manifold side: 12 mm
Total height: 96 mm (without pipe bend)
Total length: 45 mm
Total width: 60 mm
You can find matching nozzles and air filters in the accessories section.
Quality product from the Italian manufacturer Dell'Orto.
Details
| Nominal diameter | 12 mm, 10 mm |
| Manufacturer | Dell'Orto |
| Material | Aluminum |
| Component group Carburetor | Carburetor complete |
| Color | black |
| Area of application | Original, Tuning |
| Carburetor type | SHA (Piaggio) |
| Ø fuel hose connection | 6 mm, 5.3 mm |
| Nozzle size | 37 |
| Ø without reducing sleeve | 19 mm |
| Total length | 55 mm |
| Ø Internal connection | 16 mm |
| Ø Inside entrance | 10 mm |
| Ø Output inside | 12 mm |
| Width | 60 mm |
| Ø Air filter connection | 50.6 mm |
| Height | 111 mm |
| Mixed oil connection | No |
| Mounting type | Plug connection clamped |
| Vacuum connection | No |
| Choke control | Hand choke |
| Nozzle thread | M5x0.8 (standard thread) |
| Camouflaged | No |
