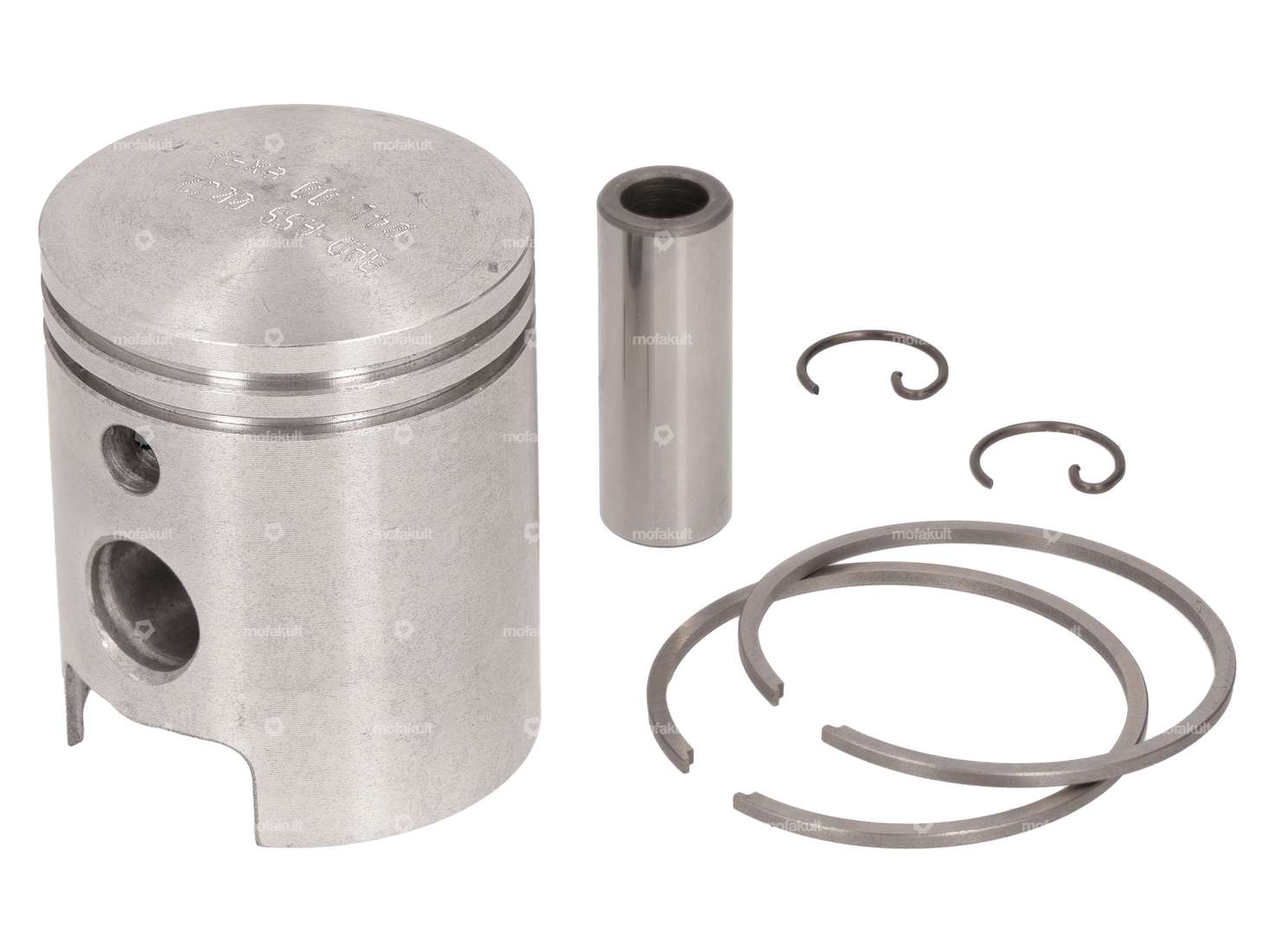

41.0 mm piston with two 1.5 mm rectangular piston rings with internal circlip (IS) for your moped / moped with blown BAD ASS Pandora 41.00 mm cylinder on Sachs 503, 50/2, 502 engines. The piston kit is used for the 41 mm cylinder variant.
The detailed dimensioning of the piston according to the technical drawing can be found in the details. You can also find out about the relevant piston rings, their stems and locking types on the legend in the pictures.
The piston kit contains piston pins, piston clips and piston rings.
You can find the alternative replacement piston from GPO for your Badass Pandora cylinder in the accessories section.
Quality product from the Italian manufacturer GOL.
Details
| Nominal diameter | 41 mm |
| Manufacturer | BAD ASS |
| Ø outside piston (A) | 40.94 mm |
| Compression height (C) | 28.1 mm |
| Curvature (D) | 1.7 mm |
| Total piston height (E) | 50.7 mm |
| Number of piston rings (F) | 2 pcs |
| Piston ring mold | Rectangular ring |
| Piston ring impact | Internal fuse (IS) |
| Ø piston pin (B) | 12 mm |
| Piston weight | 92 g |
Suitable for the following models
| Sachs | 50 (Fahrtwind, 1.25 / 1.5 hp, DE) 502 (Saxonette) - AL, AML 50/2 - L CH (0.8 PS), ML CH (0.8 PS), MB (2.6 PS), MLB (2.6 PS) 50/3 50/4 - MLFB (2.6 PS), LKH (4.5 PS) 503 - AAL, ABL, 2AL / 2BL |
