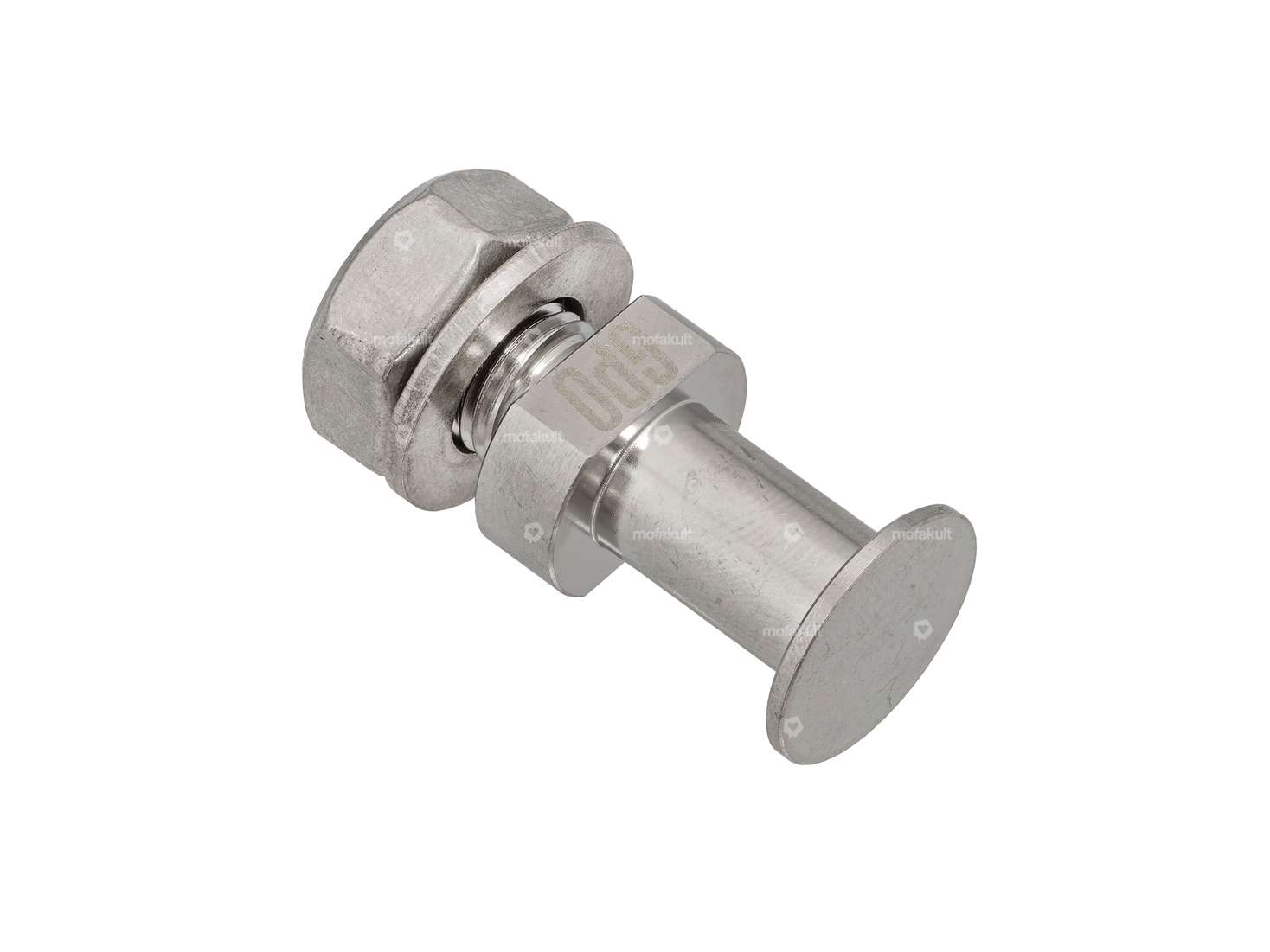

Long version of the bolt (brake anchor bolt) for holding the support plate (brake anchor plate) of various Puch mopeds, mopeds and small motorcycles.
Total length: 38.5 mm
Ø Bolt: 9.8 mm

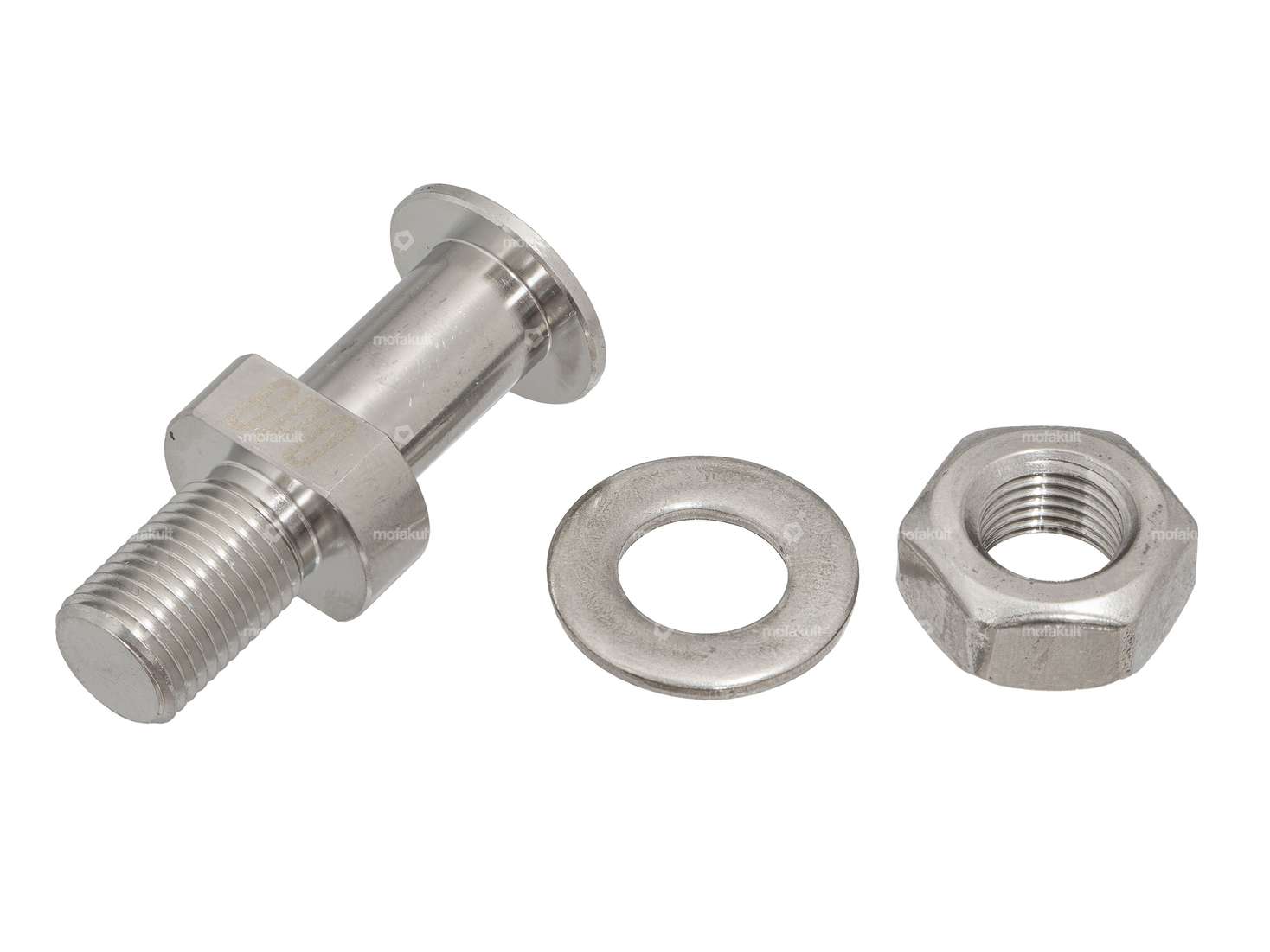

The M10x1 nut and a matching washer for the pin are included in the scope of delivery.
Good, inexpensive standard spare part. GPO – GOOD PARTS ONLY.
Original Puch spare part number: 349.1.41.508.1
Details
| Manufacturer | GPO |
| Material | Chrome steel (known as Nirosta®) |
| Thread type | MF10x1 (fine pitch thread) |
| Shank | Yes |
| Ø shaft | 9.8 mm |
| Number of components | 3 pcs |
| Total length | 38.5 mm |
Suitable for the following models
| Puch | ZA50 (air-cooled) ZA50 (fan-cooled) Z50 (X30 Sport) |
