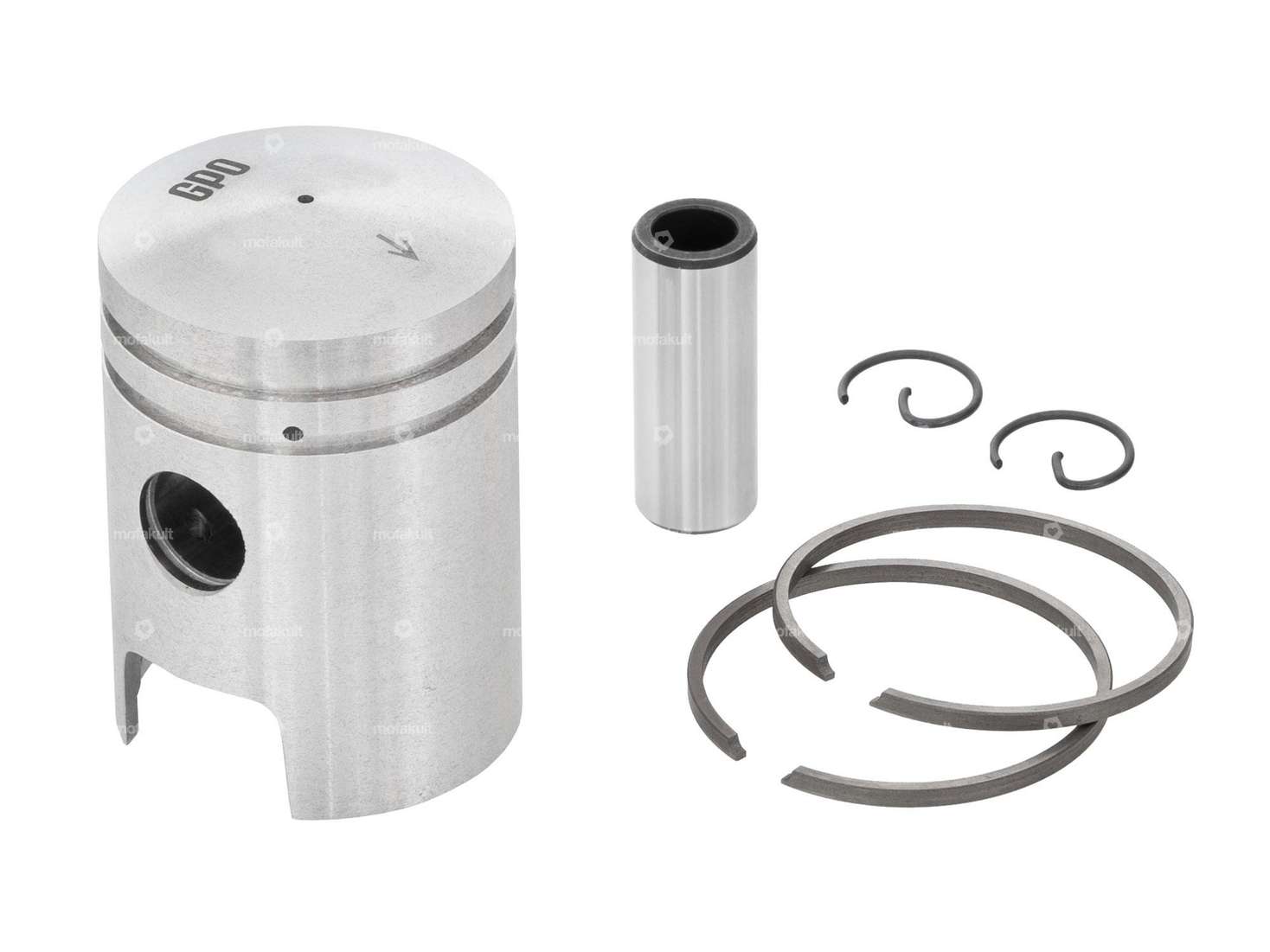

38 mm replacement piston with two rectangular piston rings with flank lock (FS) suitable for original windage-coated aluminum cylinders with nickel-silicon carbide coating (also known under the brand name Nikasil®) from Puch Maxi S / N, as well as Puch X30 Sport mopeds.
Also suitable for blown cast iron cylinders of Puch X30 NG-2A / NG-2AH, as well as Puch X30 Velux mopeds.
The detailed dimensions of the piston according to the technical drawing can be found in the details. You can also find out about the relevant piston rings, their stems and locking types on the legend in the pictures.
Details
| Manufacturer | GPO |
| Ø outside piston (A) | 37.97 mm |
| Compression height (C) | 22.7 mm |
| Curvature (D) | 3.3 mm |
| Nominal diameter | 38 mm |
| Total piston height (E) | 55 mm |
| Number of piston rings (F) | 2 pcs |
| Piston ring impact | Flank safety device (FS) |
| Piston ring mold | Rectangular ring |
| Ø piston pin (B) | 12 mm |
| Tolerance group | 3 |
| Piston weight | 73 g |
Suitable for the following models
| Puch | E50 ZA50 (air-cooled) ZA50 (fan-cooled) Z50 (X30 Sport) Z50 (X30 Velux) 2-speed MS, MV, MV50 3-speed VSD, DS, VZ, MC |
Accessories & related products
GPO piston pin extractor Ø 10, 12, 14 mm
Manufacturer: GPO · Area of application: (Dis)assembly tool · Material: Steel · Surface: burnished · Number of components: 7 pcs · Total length: 130 mm · Diameter: 10 mm · Diameter: 12 mm · Diameter: 14 mm · Width across flats SW: 10 mm · Width across flats SW: 17 mm
EUR 24.30
GPO gasket set 38 mm cylinder fan-cooled | Puch X30 NG-2AH, Velux
Manufacturer: GPO · Number of components: 4 pcs · Ø cylinder: 38 mm · Hole spacing inlet: 38 mm · Ø outlet inside: 22 mm · Hole spacing outlet: 42 mm · Hole pattern [mm]: 44 x 44 mm · Decompressor: Yes · Area of application: Standard
EUR 10.80
GPO gasket set cylinder original | Puch Maxi S, N / X30 NS, NL, N-2AH
Manufacturer: GPO · Material: Aluminum · Material: Sealing carton · Material: Sealing paper · Number of components: 4 pcs · Thickness: 0.3 mm · Thickness: 0.4 mm · Thickness: 1.8 mm · Ø cylinder: 38 mm · Hole spacing inlet: 32 - 38 mm · Ø outlet inside: 22 mm · Hole spacing outlet: 42 mm · Hole pattern [mm]: 44 x 44 mm · Decompressor: Yes · Area of application: Standard
EUR 9.00
Moped fans like you also bought:
BERU spark plug connector / 1 kΩ interference suppressed
Manufacturer: BERU · Material: Sheet metal (steel) · Spark plug socket: M4 · Cable available: No · Suppressed: Yes · Color: silver · Resistance: 1000 Ω · Component group Carburetor: Spraying · Ø cable: 5 mm · Ø cable: 7 mm · Pony OEM number: A2099 · Sachs OEM no.: 0265 100 00
EUR 10.70
GPO 38 mm cylinder head original | Puch Maxi S, N / X30 NS, NL, N-2AH
Manufacturer: GPO · Material: Aluminum · Surface: sandblasted · Ø cylinder: 38 mm · Number of fixing points: 4 pcs · Candle thread: short · Hole pattern [mm]: 44 x 44 · Decompressor: No · Area of application: Standard · Total length: 135 mm · Width: 125 mm · Height: 55 mm
EUR 40.10
swiing® revival gasket set Z50 engine | Puch X30 NS / NL
Manufacturer: swiing® revival parts · Material: Sealing paper · Number of components: 10 pcs · Hole spacing inlet: 32 - 38 mm · Ø outlet inside: 22 mm · Hole spacing outlet: 42 mm · Hole pattern [mm]: 44 x 44 · Area of application: Standard
EUR 24.30
GPO gasket set | Puch E50
Manufacturer: GPO · Material: Aluminum · Material: Fiber · Material: Sealing carton · Material: Sealing paper · Number of components: 7 pcs · Hole spacing inlet: 32 - 38 mm · Ø outlet inside: 19.9 mm · Hole spacing outlet: 42 mm · Hole pattern [mm]: 44 x 44 · Decompressor: Yes · Area of application: Standard
EUR 12.10
swiing® revival stud bolt set M6 x 106 mm | Puch
Manufacturer: swiing® revival parts · Material: Steel · Surface: galvanized (blue) · Diameter: 5.9 mm · Thread type: M6x1 (standard thread) · Total length: 106 mm · Thread length: 13 mm · Thread length: 18.5 mm · Width across flats SW: 10 mm · Drive: External hexagon · Alternative version of the Puch OEM number: 360.1.10.034.1
EUR 9.00
swiing® revival screw set engine galvanized | Puch Maxi
Manufacturer: swiing® revival parts · Material: Steel · Surface: galvanized (blue) · Drive: Cross recess · Drive: Hexagon socket · Screw head: Countersunk head · Screw head: Cylinder head · Screw head: Lens head · Puch OEM number: 900.1216 · Puch OEM number: 901.1308
EUR 12.10
GPO Piston 38 mm No. 1 | Puch
Manufacturer: GPO · Nominal diameter: 38 mm · Ø outside piston (A): 37.95 mm · Ø piston pin (B): 12 mm · Compression height (C): 22.7 mm · Curvature (D): 3.3 mm · Total piston height (E): 55 mm · Number of piston rings (F): 2 pcs · Piston ring mold: Rectangular ring · Piston ring impact: Flank safety device (FS) · Tolerance group: 1 · Piston weight: 74 g
EUR 41.30
Collection only possible with online purchase and appointment.
