For the economical repair of damaged or worn threads (of all materials) and as a structural element for thread reinforcement when using materials with low shear strength (e.g. aluminum, aluminum-magnesium alloys). The use of wear-free HeliCoil thread inserts not only repairs the thread, but also increases the thread load-bearing capacity.
Execution:
High-strength, free-running HeliCoil® plus thread inserts made of stainless steel with high wear resistance, low thread friction in tight tolerances, high surface quality as well as corrosion and heat resistance. The flexible design enables even load and stress distribution and thus produces durable screw connections of the highest quality for all operating loads (static, dynamic) with ideal force transmission. Uncomplicated, quick assembly, a gauge-containing internal thread that can be used on both sides is created.

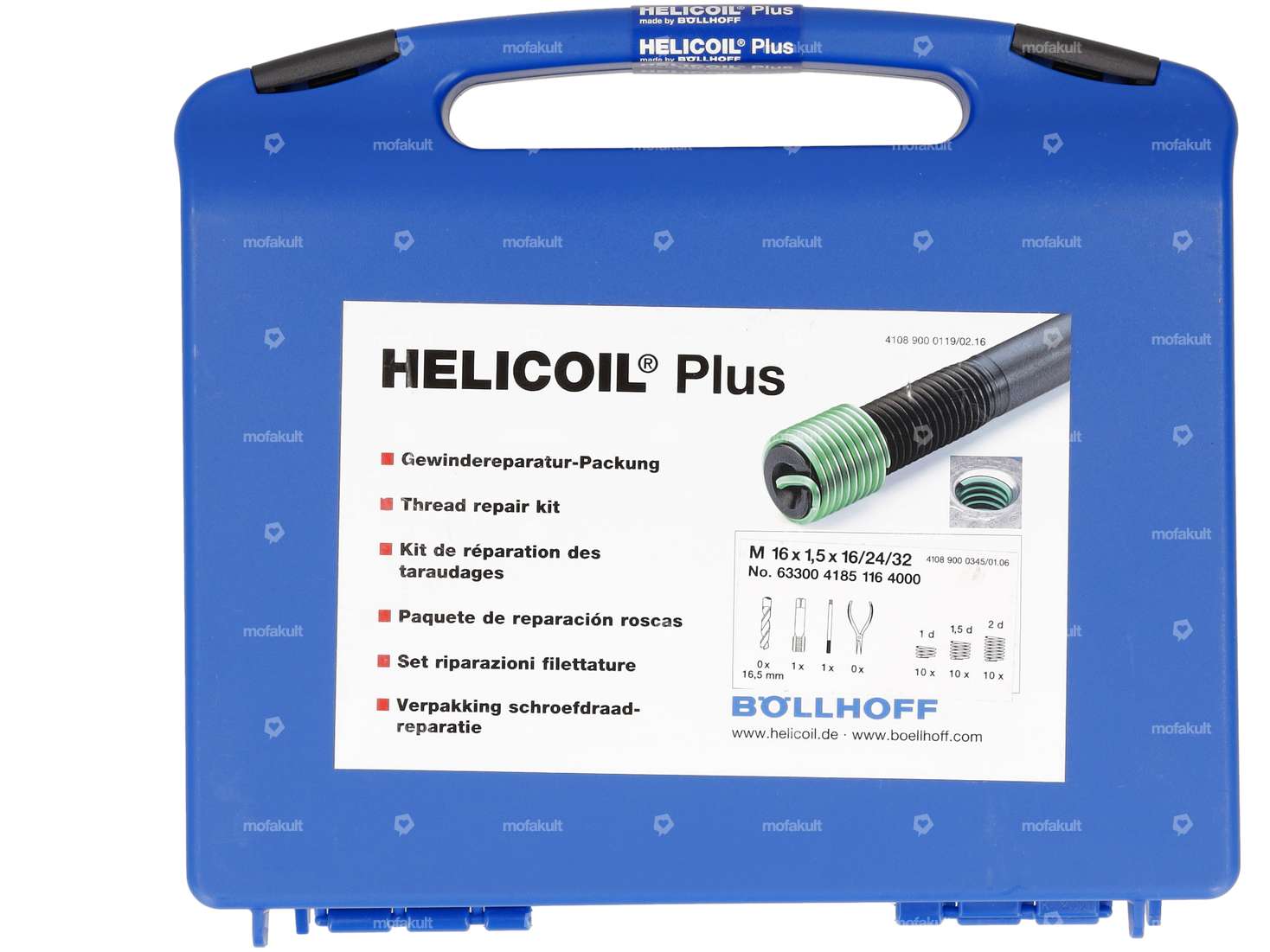

Complete repair kit for M16x1.50 thread sizes in plastic case.
Application:
1. Drill out defective thread with 16.5 mm drill (not included in scope of delivery).
2. Check the tap and threaded bolt.
3. Cut the holding thread with the special HeliCoil tap.
4. Turn the thread insert into the holding thread using the installation tool.
5. Remove the tang with a punch or needle-nose pliers.

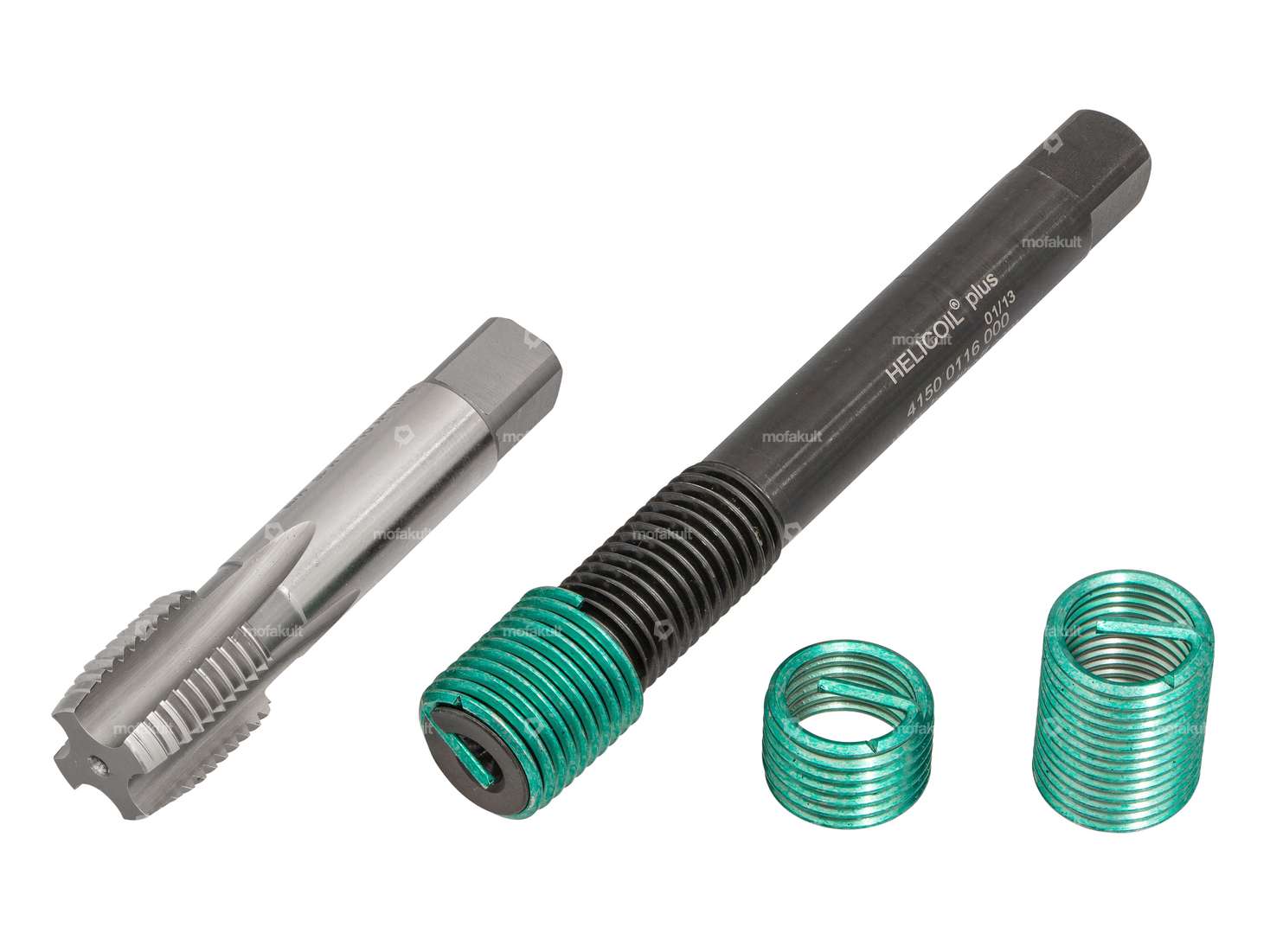

Scope of delivery
- 1 pc. Thread cutter
- 1 pc. Installation tool
- 10 pcs. HeliCoil thread insert (1D / 16 mm)
- 10 pcs. HeliCoil thread insert (1.5D / 24 mm)
- 10 pcs. HeliCoil threaded insert (2D / 32 mm)
- 1 pc. Plastic case
A detailed instruction manual is included.
Original HeliCoil product from the German manufacturer Böllhoff.
Details
| Storage method | Plastic box |
| Manufacturer | HeliCoil |
| Material | Chrome steel (known as Nirosta®) |
| Area of application | Workshop accessories |
| Number of components | 32 pcs |
| Dimension thread insert | 1D, 1.5D, 2D |
| Ø bore | 16.5 mm |
| Total length | 16 mm, 24 mm, 32 mm |
| Nominal diameter (thread) | 16 mm |
| Thread type | MF16x1.5 (fine pitch thread) |
Accessories & related products
HeliCoil thread repair case M5 - M12 (professional tool)
Manufacturer: HeliCoil · Material: Chrome steel (known as Nirosta®) · Area of application: Workshop accessories · Thread type: M10x1.5 (standard thread) · Thread type: M12x1.75 (standard thread) · Thread type: M5x0.8 (standard thread) · Thread type: M6x1 (standard thread) · Thread type: M8x1.25 (standard thread) · Nominal diameter (thread): 5 mm · Nominal diameter (thread): 6 mm · Nominal diameter (thread): 8 mm · Nominal diameter (thread): 10 mm · Nominal diameter (thread): 12 mm · Dimension thread insert: 1D · Dimension thread insert: 1.5D · Dimension thread insert: 2D · Number of components: 300 pcs · Storage method: Suitcase · Dimension storage box: 420 x 345 x 120 mm
EUR 414.30
HeliCoil plug thread repair set M14x1.25 (professional tool)
Manufacturer: HeliCoil · Material: Chrome steel (known as Nirosta®) · Area of application: Workshop accessories · Thread type: MF14x1.25 (fine pitch thread) · Nominal diameter (thread): 14 mm · Dimension thread insert: 0.5D · Dimension thread insert: 1D · Dimension thread insert: 1.5D · Number of components: 30 pcs · Storage method: Suitcase · Dimension storage box: 250 x 50 x 220 mm
EUR 170.50

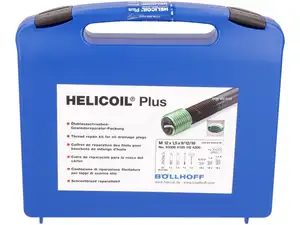

HeliCoil thread repair set M12x1.5 oil spigot hole (fine thread)
Manufacturer: HeliCoil · Material: Chrome steel (known as Nirosta®) · Area of application: Workshop accessories · Thread type: MF12x1.5 (fine pitch thread) · Nominal diameter (thread): 12 mm · Dimension thread insert: 0.75D · Dimension thread insert: 1D · Dimension thread insert: 1.5D · Total length: 9 mm · Total length: 12 mm · Total length: 16 mm · Number of components: 35 pcs · Storage method: Plastic box
EUR 231.50

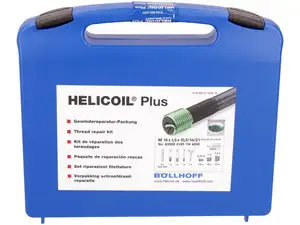

HeliCoil thread repair set M14x1.5 oil spigot hole (fine thread)
Manufacturer: HeliCoil · Material: Chrome steel (known as Nirosta®) · Area of application: Workshop accessories · Thread type: MF14x1.5 (fine pitch thread) · Nominal diameter (thread): 14 mm · Dimension thread insert: 0.75D · Dimension thread insert: 1D · Dimension thread insert: 1.5D · Total length: 10.5 mm · Total length: 14 mm · Total length: 21 mm · Number of components: 35 pcs · Storage method: Plastic box
EUR 255.80
HeliCoil thread repair set M14 (professional tool)
Manufacturer: HeliCoil · Material: Chrome steel (known as Nirosta®) · Area of application: Workshop accessories · Thread type: M14x2 (standard thread) · Nominal diameter (thread): 14 mm · Dimension thread insert: 1D · Dimension thread insert: 1.5D · Dimension thread insert: 2D · Ø bore: 14.5 mm · Total length: 14 mm · Total length: 21 mm · Total length: 28 mm · Number of components: 32 pcs · Storage method: Plastic box
EUR 146.10
HeliCoil thread repair set M16
Manufacturer: HeliCoil · Material: Chrome steel (known as Nirosta®) · Area of application: Workshop accessories · Thread type: M16x2 (standard thread) · Nominal diameter (thread): 16 mm · Dimension thread insert: 1D · Dimension thread insert: 1.5D · Dimension thread insert: 2D · Ø bore: 16.5 mm · Total length: 16 mm · Total length: 24 mm · Total length: 32 mm · Number of components: 32 pcs · Storage method: Plastic box
EUR 164.40
Moped fans like you also bought:
HeliCoil plug thread repair set M14x1.25 (professional tool)
Manufacturer: HeliCoil · Material: Chrome steel (known as Nirosta®) · Area of application: Workshop accessories · Thread type: MF14x1.25 (fine pitch thread) · Nominal diameter (thread): 14 mm · Dimension thread insert: 0.5D · Dimension thread insert: 1D · Dimension thread insert: 1.5D · Number of components: 30 pcs · Storage method: Suitcase · Dimension storage box: 250 x 50 x 220 mm
EUR 170.50

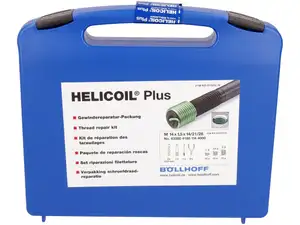

HeliCoil thread repair set M14x1.5 (fine thread)
