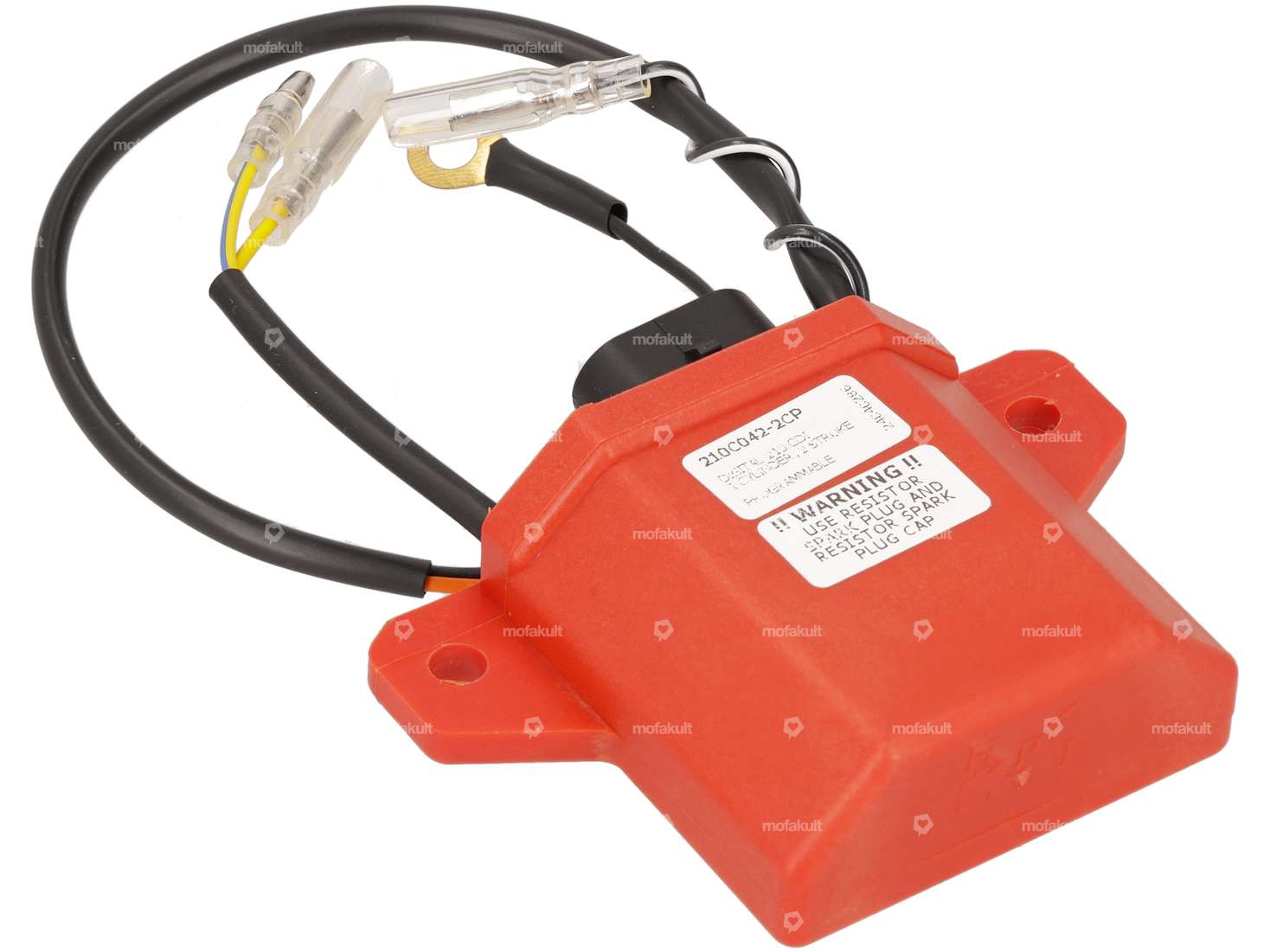

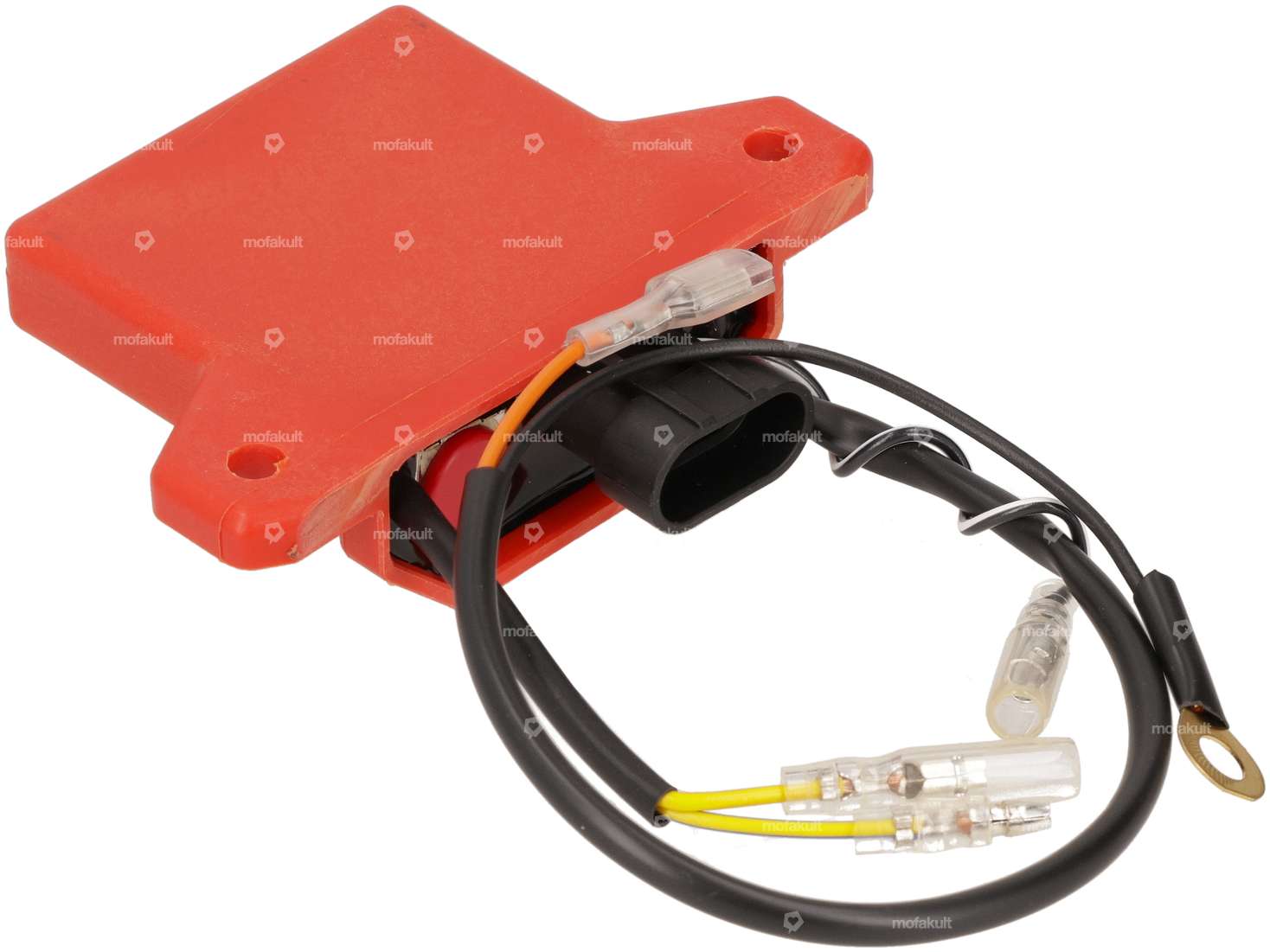

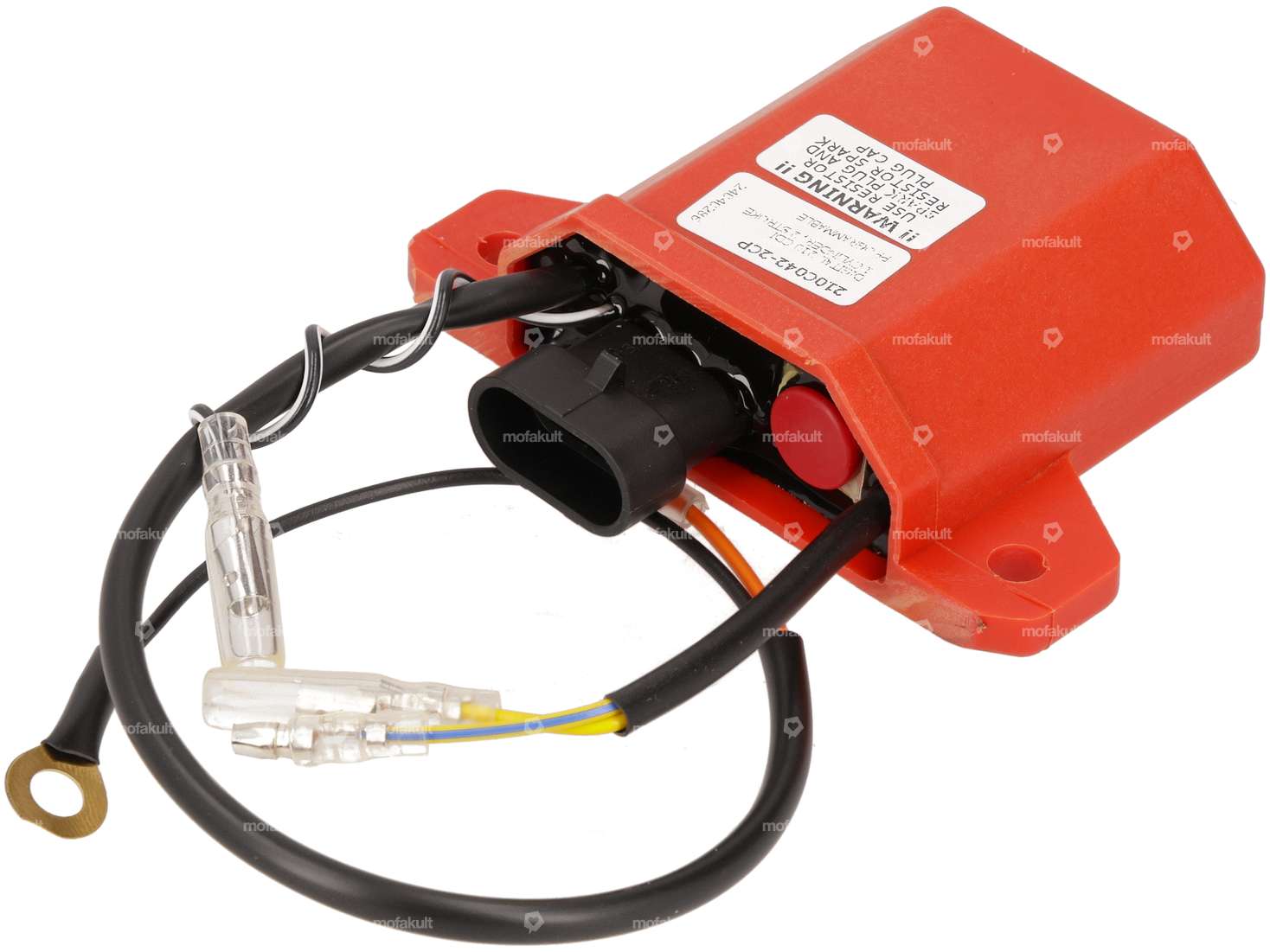

Special ignition box with two programmable ignition curves for your moped / moped.
The ignition curves can be freely determined on the computer itself. To do this, you need software, which you can find on the HPI homepage (Tune Box) and download free of charge.
For tuning freaks with good technical knowledge.
The ignition box is compatible with all HPI-210 ignitions and is used instead of the usual CDI box.
To make things easier, the switch at the bottom of the accessory can be connected. This makes it easy to switch between the two ignition curves at the touch of a button. We also offer a complete set with all the individual parts you need for programming and use.
Installation:

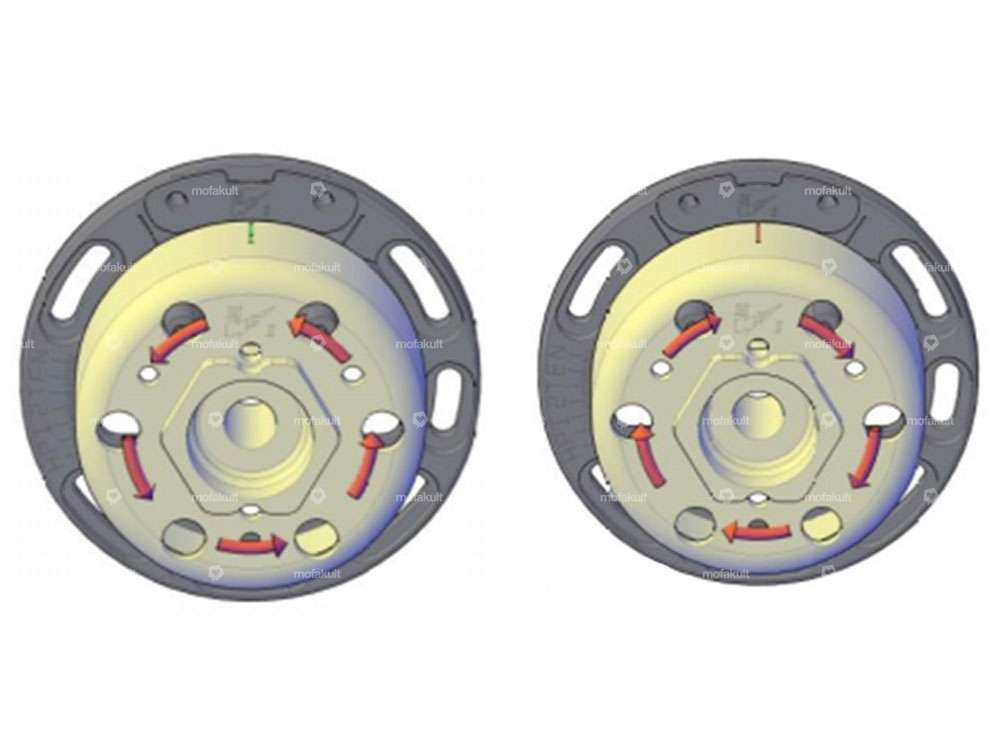

When using the standard ignition box, the feed rate is set via the flywheel. With the programmable ignition box, however, this is done with the software. For this reason, the rotor must match the marking on the stator at TDC (0° preload). This can be seen in Figure 4.
The corresponding connection cable for the computer and other accessories can be found below in the accessories section.
Branded product from the manufacturer HPI – Horse Power Ignition.
Details
| Manufacturer | HPI |
| Material | Plastic |
| Color | red |
| Ø mounting hole | 7.5 mm |
| Hole spacing | 80 mm |
| Number of fixing points | 2 pcs |
| Area of application | Performance, Racing, High End, Tuning |
| Total length | 63 mm |
| Width | 100 mm |
| Height | 28 mm |
Suitable for the following models
| Universal | |
| Puch | |
| Sachs | |
| Pony / Cilo (Beta 521 & 512) | |
| Piaggio | |
| Zündapp Belmondo |
