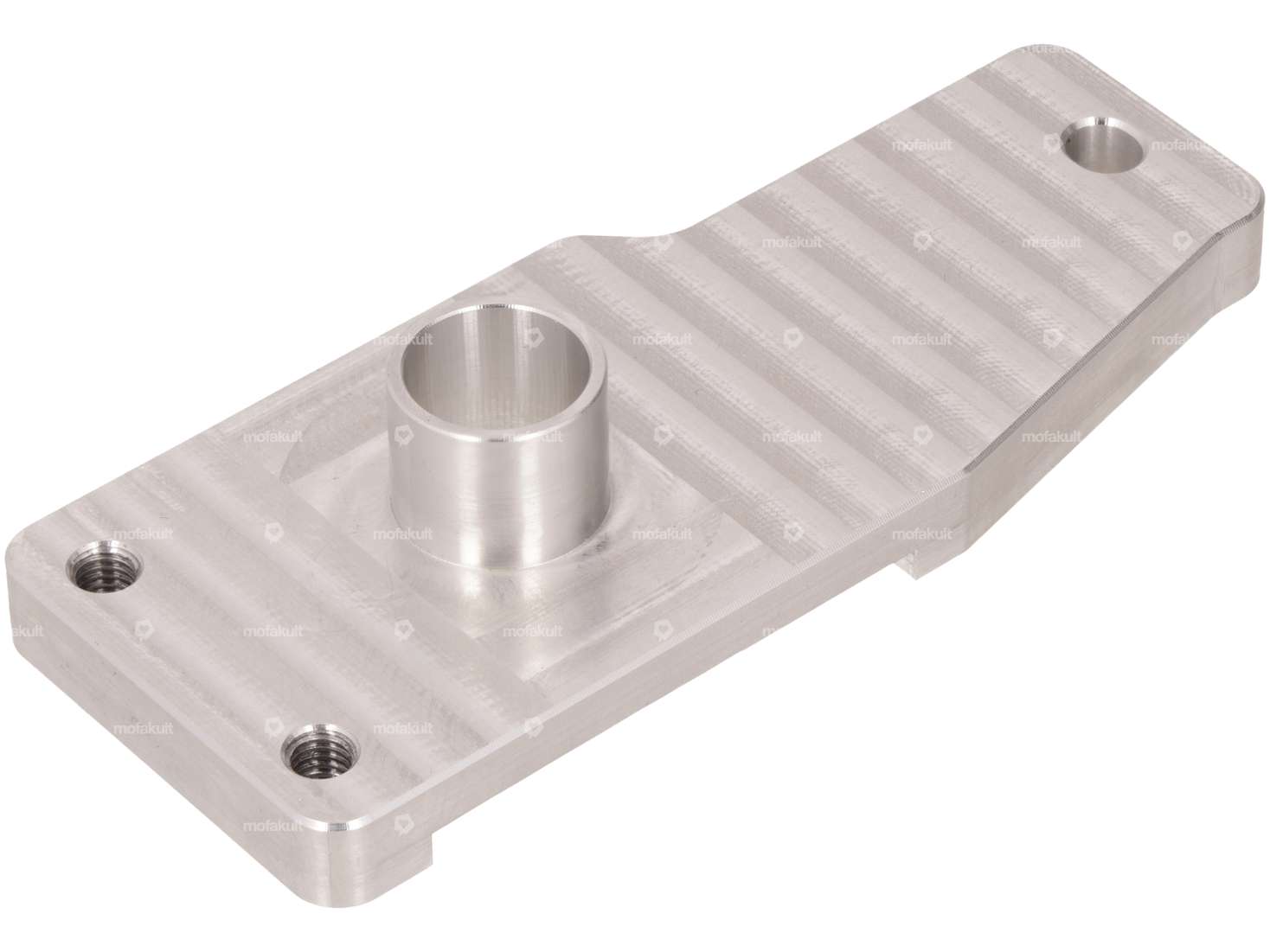

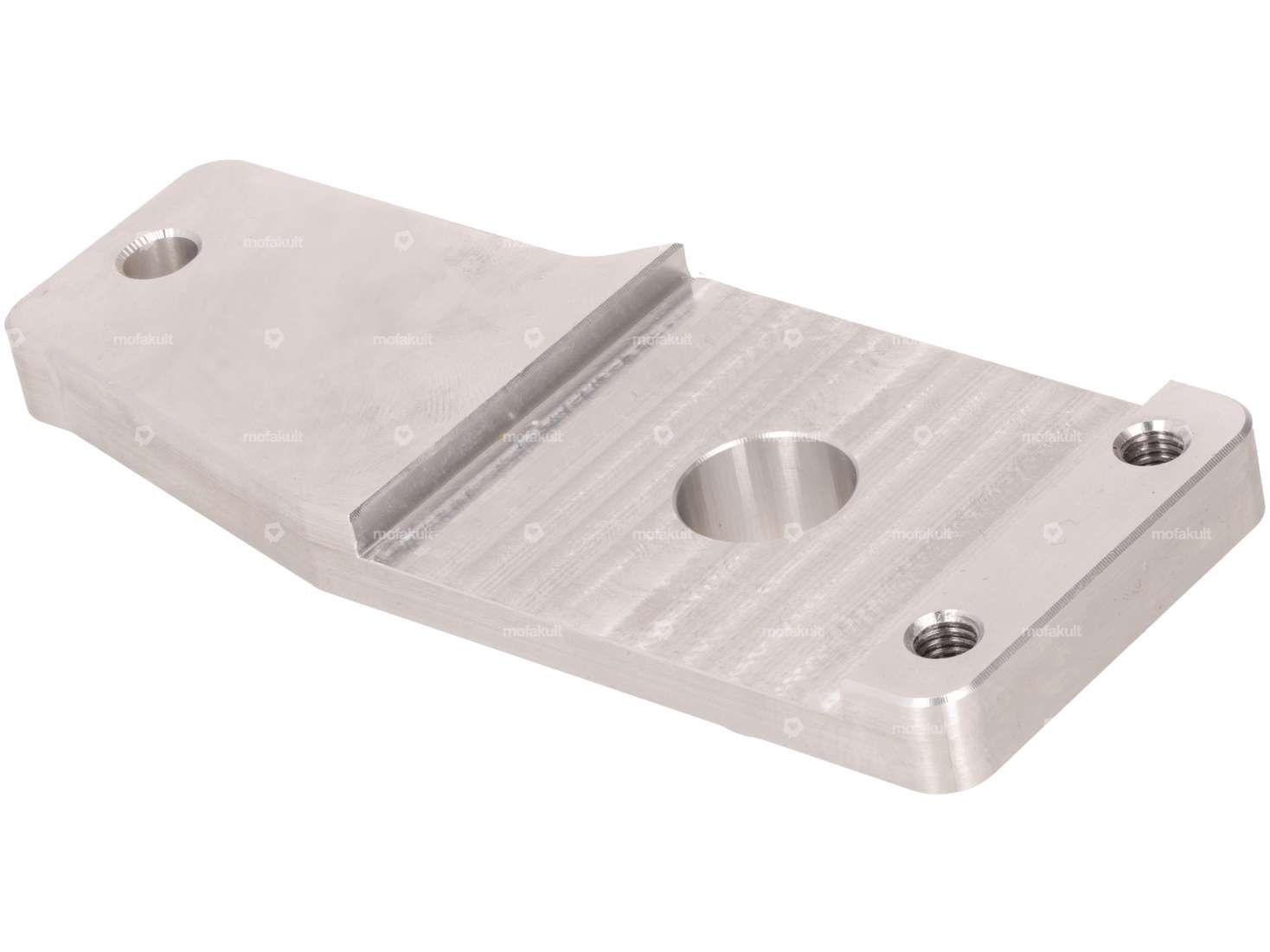

Aluminum intake manifold for the reed valve system of the Malossi MP-One fits your Piaggio Si, Boxer and Grillo moped / moped.
This CNC-milled reed valve flange can be used to mount conventional 15 or 16 mm Dell'Orto SHA carburettors.
Note: On the Ciao and Bravo, adjustments must be made to the frame to create enough space for the carburetor.
You can find the matching housing and racing carburetor in the accessories section.
Details
| Material | Aluminum |
| Ø inside | 16 mm |
| Ø External connection | 19 mm |
| Mounting type | Screws |
| Thread type | M6x1 (standard thread) |
| Hole pattern [mm] | 30 |
| Number of fixing points | 3 pcs |
| Total length | 118 mm |
Suitable for the following models
| Piaggio | Si Boxer Grillo |
