Piaggio cylinder

Piston Ø 38.6 (10 mm KoBo) NOS | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: Piaggio · Nominal diameter: 38.6 mm · Ø outside piston (A): 38.54 mm · Ø piston pin (B): 10 mm · Compression height (C): 26.6 mm · Curvature (D): 3.4 mm · Total piston height (E): 52 mm · Number of piston rings (F): 2 pcs · Piston ring mold: L-ring · Piston ring mold: Rectangular ring · Piston ring impact: Flank safety device (FS) · Piston ring impact: Internal fuse (IS) · Piston ring height: 1.6 mm · Piston ring height: 2 mm · Thick piston ring: 1.5 mm · Thick piston ring: 1.9 mm · Piston weight: 77 g · Piaggio OEM number: 196116

Cylinder head TC04 NOS | Piaggio Ciao

Manufacturer: Piaggio · Material: Aluminum · Ø cylinder: 38 mm · Number of fixing points: 3 pcs · Candle thread: short · Total length: 120 mm · Width: 79 mm · Height: 60 mm · Area of application: Original · Piaggio OEM number: 159998 · Alternative version of the Piaggio OEM number: 113237

GPO piston 43 mm (10 mm KoBo) | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: GPO · Nominal diameter: 43 mm · Ø outside piston (A): 42.94 mm · Ø piston pin (B): 10 mm · Compression height (C): 26.5 mm · Curvature (D): 2.5 mm · Total piston height (E): 50.5 mm · Number of piston rings (F): 2 pcs · Piston ring mold: Rectangular ring · Piston ring impact: Flank safety device (FS) · Piston ring height: 1.5 mm · Piston weight: 82 g

GOL piston 41 mm (10 mm KoBo) | Piaggio Ciao, SI, Boxer, Bravo

Manufacturer: GOL · Nominal diameter: 41 mm · Ø outside piston (A): 40.94 mm · Ø piston pin (B): 10 mm · Compression height (C): 25 mm · Curvature (D): 2.4 mm · Total piston height (E): 50 mm · Number of piston rings (F): 2 pcs · Piston ring mold: Rectangular ring · Piston ring impact: Flank safety device (FS) · Piston ring height: 1.5 mm · Piston weight: 78 g

GOL piston 41 mm (12 mm KoBo) | Piaggio Ciao, SI, Boxer, Bravo

Manufacturer: GOL · Nominal diameter: 41 mm · Ø outside piston (A): 40.94 mm · Ø piston pin (B): 12 mm · Compression height (C): 26.7 mm · Curvature (D): 2.8 mm · Total piston height (E): 50.8 mm · Number of piston rings (F): 2 pcs · Piston ring mold: Rectangular ring · Piston ring impact: Flank safety device (FS) · Piston ring height: 1.5 mm · Piston weight: 78 g

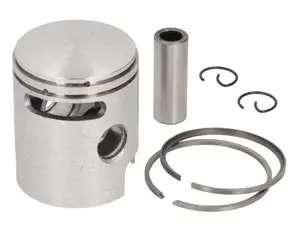

DMP piston 41 mm (12 mm KoBo) | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: DMP · Nominal diameter: 41 mm · Ø outside piston (A): 40.96 mm · Ø piston pin (B): 12 mm · Compression height (C): 26.2 mm · Curvature (D): 2.4 mm · Total piston height (E): 50.6 mm · Number of piston rings (F): 2 pcs · Piston ring mold: L-ring · Piston ring mold: Rectangular ring · Piston ring impact: Flank safety device (FS) · Piston ring impact: Internal fuse (IS) · Piston ring height: 1.5 mm · Piston ring height: 2 mm · Piston weight: 75 g

Meteor piston ring 40.2 x 1.5 mm (FS)

Manufacturer: Meteor · Nominal diameter: 40.2 mm · Thick piston ring: 1.65 mm · Piston ring mold: Rectangular ring · Piston ring impact: Flank safety device (FS) · Height: 1.5 mm · Area of application: Tuning

Vertex piston 38.4 mm (10 mm KoBo) original NOS | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: Vertex · Nominal diameter: 38.4 mm · Ø outside piston (A): 38.34 mm · Ø piston pin (B): 10 mm · Compression height (C): 26.6 mm · Curvature (D): 3.4 mm · Total piston height (E): 52 mm · Number of piston rings (F): 2 pcs · Piston ring mold: L-ring · Piston ring mold: Rectangular ring · Piston ring impact: Flank safety device (FS) · Piston ring impact: Internal fuse (IS) · Piston ring height: 1.6 mm · Piston ring height: 2 mm · Thick piston ring: 1.5 mm · Thick piston ring: 1.9 mm · Piston weight: 76 g · Piaggio OEM number: 196115

Polini gasket set 47 mm cylinder kit EVO | | Piaggio Ciao, SI, Bravo, Grillo

Manufacturer: Polini · Material: Aluminum · Material: Copper · Material: NBR · Number of components: 5 pcs · Thickness: 0.1 mm · Thickness: 0.2 mm · Thickness: 0.5 mm

Polini 47 mm EVO cylinder head | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: Polini · Material: Aluminum · Ø cylinder: 47 mm · Camouflaged: No · Number of fixing points: 4 pcs · Hole pattern [mm]: 43 x 52 · Candle thread: long

Polini piston 47 mm EVO cylinder (12 mm KoBo) | Piaggio Ciao, SI, Bravo, Boxer, Grillo

Manufacturer: Polini · Nominal diameter: 47 mm · Ø outside piston (A): 46.92 mm · Ø piston pin (B): 12 mm · Compression height (C): 31.6 mm · Curvature (D): 2 mm · Total piston height (E): 55.5 mm · Number of piston rings (F): 2 pcs · Piston ring mold: Rectangular ring · Piston ring impact: Internal fuse (IS) · Piston ring height: 1.2 mm · Piston weight: 101 g

Malossi piston 43 mm (10 mm KoBo) new version | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: Malossi · Nominal diameter: 43 mm · Ø outside piston (A): 42.96 mm · Ø piston pin (B): 10 mm · Compression height (C): 26 mm · Curvature (D): 3 mm · Total piston height (E): 51 mm · Number of piston rings (F): 2 pcs · Piston ring mold: Rectangular ring · Piston ring impact: Internal fuse (IS) · Piston ring height: 1.5 mm · Thick piston ring: 1.75 mm · Piston weight: 88 g

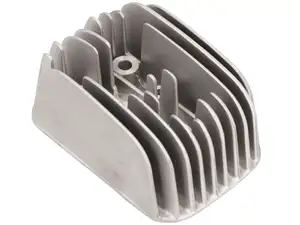

Pinasco cylinder head 42 mm | Piaggio Ciao

Manufacturer: Pinasco · Material: Aluminum · Ø cylinder: 42 mm · Ø outside: 55 mm · Camouflaged: Yes · Number of fixing points: 3 pcs · Candle thread: long · Decompressor: Yes · Total length: 118.6 mm · Width: 78.4 mm · Height: 57 mm · Area of application: Tuning

Polini gasket set EVO REED engine case | Piaggio Ciao, SI, Bravo, Grillo

Manufacturer: Polini · Thickness: 0.3 mm · Thickness: 0.5 mm · Thickness: 0.7 mm · Material: Rubber · Material: Sealing paper · Number of components: 4 pcs

swiing® revival cylinder base gasket blank | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: swiing® revival parts · Material: Oiled paper · Place of use: Cylinder base · Thickness: 0.5 mm · Nominal diameter: 46 mm · Ø inside: 46 mm · Area of application: Standard

Athena piston 46 mm (12 mm KoBo) #B | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: Athena · Nominal diameter: 46 mm · Ø outside piston (A): 46.03 mm · Ø piston pin (B): 12 mm · Compression height (C): 26.05 mm · Curvature (D): 3 mm · Total piston height (E): 51 mm · Number of piston rings (F): 2 pcs · Piston ring mold: L-ring · Piston ring mold: Rectangular ring · Piston ring impact: Internal fuse (IS) · Piston ring height: 1.5 mm · Piston ring height: 2 mm · Tolerance group: B · Piston weight: 95 g

swiing® revival 0.5 mm cylinder base gasket | Piaggio Ciao, SI, Bravo, Boxer

Ø inside: 46 mm · Manufacturer: swiing® revival parts · Material: Oiled paper · Ø cylinder: 38 - 43 mm · Place of use: Cylinder base · Thickness: 0.5 mm · Piaggio OEM number: 182519

Malossi piston 43 mm (12 mm KoBo) new version | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: Malossi · Ø outside piston (A): 42.96 mm · Compression height (C): 26 mm · Curvature (D): 3 mm · Total piston height (E): 51 mm · Number of piston rings (F): 2 pcs · Nominal diameter: 43 mm · Piston ring mold: Rectangular ring · Piston ring impact: Internal fuse (IS) · Piston ring height: 1.5 mm · Thick piston ring: 1.75 mm · Ø piston pin (B): 12 mm · Piston weight: 87 g

swiing® revival 0.3 mm cylinder base gasket | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: swiing® revival parts · Material: Oiled paper · Ø inside: 46 mm · Thickness: 0.3 mm · Ø cylinder: 38 - 43 mm · Place of use: Cylinder base · Piaggio OEM number: 182519

GPO piston 38.4 mm (10 mm KoBo) oversize | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: GPO · Ø outside piston (A): 38.35 mm · Compression height (C): 26 mm · Curvature (D): 3.7 mm · Total piston height (E): 51.7 mm · Number of piston rings (F): 2 pcs · Nominal diameter: 38 mm · Piston ring mold: L-ring · Piston ring mold: Rectangular ring · Piston ring impact: Flank safety device (FS) · Piston ring impact: Internal fuse (IS) · Piston ring height: 1.5 mm · Piston ring height: 2 mm · Ø piston pin (B): 10 mm · Piston weight: 75 g

Needle bearing 10/13/14.2 Piston pin

Bearing type: Needle roller and cage assembly · Bearing cage: Sheet steel cage · Ø inside: 10 mm · Ø outside: 13 mm · Width: 14.2 mm · Dimension needle bearing: 10/13 x 14.2

Meteor piston pin lock Ø 12 mm (double)

Manufacturer: Meteor · Material: Spring steel · Surface: blank · Number of sensors / lugs: 2 pcs · Ø outside: 12 mm · Pony OEM number: A1632 · Tomos OEM number: 032039 · Sachs OEM no.: 0245 000 000

Meteor piston pin lock Ø 10 mm (double)

Manufacturer: Meteor · Material: Spring steel · Surface: blank · Number of sensors / lugs: 2 pcs · Ø outside: 10 mm

GPO piston stopper M14x1.25

Manufacturer: GPO · Material: Steel · Surface: galvanized (blue) · Area of application: Special tool · Number of components: 1 pcs · Diameter: 12 mm · Diameter: 16 mm · Width across flats SW: 17 mm · Total length: 83 mm · Thread type: MF14x1.25 (fine pitch thread)

swiing® revival needle roller bearing 12/15/14.2 original

Bearing cage: Sheet steel cage · Dimension needle bearing: 12/15 x 14.2 · Manufacturer: swiing® revival parts · Bearing type: Needle sleeve · Ø outside: 15 mm · Ø inside: 12 mm · Width: 14.2 mm · Alternative version of the Pony OEM number: A4222 · Tomos OEM number: 035548 · Alternative version of the Sachs OEM number: 0232 155 001

38.4 mm gasket cylinder head graphite | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: Made in Netherlands · Material: Graphite / Graphite · Number of components: 1 pcs · Thickness: 0.6 mm · Ø cylinder: 38.4 mm · Area of application: Original · Area of application: Standard

Polini cylinder head for 38.4 - 43 mm cylinder kit (version 2.0) | Piaggio Ciao, SI, Bravo, Boxer

Width: 85 mm · Manufacturer: Polini · Material: Aluminum · Camouflaged: No · Total length: 118 mm · Ø cylinder: 38.4 - 43 mm · Height: 58 mm · Candle thread: long · Decompressor: Yes · Area of application: Tuning

Airsal piston pin lock Ø 12 mm (single)

Manufacturer: Airsal · Material: Spring steel · Surface: blank · Number of sensors / lugs: 1 pcs · Ø outside: 12 mm

GPO piston pin extractor Ø 10, 12, 14 mm

Manufacturer: GPO · Material: Steel · Surface: burnished · Area of application: (Dis)assembly tool · Number of components: 7 pcs · Total length: 130 mm · Width across flats SW: 10 mm · Width across flats SW: 17 mm · Diameter: 10 mm · Diameter: 12 mm · Diameter: 14 mm

DR 43x1.2 mm piston rings (pair) | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: DR Racing Parts · Nominal diameter: 43 mm · Height: 1.2 mm · Piston ring impact: Internal fuse (IS)

DR piston 43 mm (10 mm KoBo) | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: DR Racing Parts · Ø piston pin (B): 10 mm · Nominal diameter: 43 mm · Ø outside piston (A): 42.9 mm · Compression height (C): 26.1 mm · Curvature (D): 2.4 mm · Total piston height (E): 50.5 mm · Number of piston rings (F): 2 pcs · Piston ring mold: Rectangular ring · Piston ring impact: Internal fuse (IS) · Piston ring height: 1.2 mm · Piston weight: 82 g

Meteor piston ring 39 x 1.5 mm (FS)

Manufacturer: Meteor · Nominal diameter: 39 mm · Height: 1.5 mm · Piston ring mold: Rectangular ring · Piston ring impact: Flank safety device (FS) · Thick piston ring: 1.65 mm

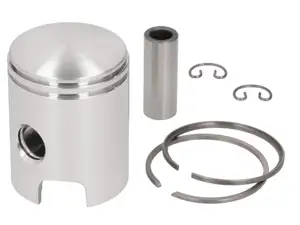

Meteor piston 38.2 - 39.6 mm (12 mm KoBo) | Piaggio Ciao, SI, Bravo Boxer

Manufacturer: Meteor · Nominal diameter: 38 mm · Nominal diameter: 38.4 mm · Nominal diameter: 38.6 mm · Nominal diameter: 38.8 mm · Nominal diameter: 39 mm · Nominal diameter: 39.2 mm · Nominal diameter: 39.4 mm · Nominal diameter: 39.6 mm · Ø outside piston (A): 38.17 mm · Ø outside piston (A): 38.33 mm · Ø outside piston (A): 38.54 mm · Ø outside piston (A): 38.76 mm · Ø outside piston (A): 38.94 mm · Ø outside piston (A): 39.15 mm · Ø outside piston (A): 39.34 mm · Ø outside piston (A): 39.53 mm · Compression height (C): 26.5 mm · Curvature (D): 3.5 mm · Total piston height (E): 52 mm · Number of piston rings (F): 2 pcs · Piston ring mold: L-ring · Piston ring mold: Rectangular ring · Piston ring impact: Flank safety device (FS) · Piston ring impact: Internal fuse (IS) · Ø piston pin (B): 12 mm · Piston ring height: 1.5 mm · Piston ring height: 2 mm

Athena cylinder base gasket oil paper | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: Athena · Material: Oiled paper · Place of use: Cylinder base

Athena piston 38.4 mm (10 mm KoBo) | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: Athena · Nominal diameter: 38.4 mm · Ø outside piston (A): 38.355 mm · Compression height (C): 26.3 mm · Curvature (D): 3.9 mm · Total piston height (E): 51.85 mm · Number of piston rings (F): 2 pcs · Piston ring mold: Rectangular ring · Piston ring impact: Flank safety device (FS) · Piston ring height: 1.5 mm · Ø piston pin (B): 10 mm · Piston weight: 80 g

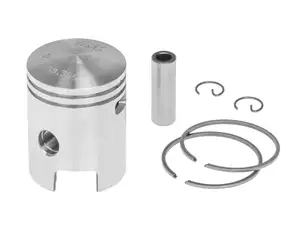

Athena piston 38.4 mm (12 mm KoBo) | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: Athena · Nominal diameter: 38.4 mm · Ø outside piston (A): 38.32 mm · Compression height (C): 26.3 mm · Curvature (D): 3.9 mm · Total piston height (E): 51.83 mm · Number of piston rings (F): 2 pcs · Piston ring mold: Rectangular ring · Piston ring impact: Internal fuse (IS) · Piston ring height: 1.5 mm · Ø piston pin (B): 12 mm · Piston weight: 76 g

Olympia piston 38.4 mm (10 mm KoBo) | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: Olympia · Nominal diameter: 38.4 mm · Ø outside piston (A): 38.34 mm · Compression height (C): 26.4 mm · Curvature (D): 3.6 mm · Total piston height (E): 51.9 mm · Number of piston rings (F): 2 pcs · Piston ring mold: L-ring · Piston ring mold: Rectangular ring · Piston ring impact: Flank safety device (FS) · Piston ring impact: Internal fuse (IS) · Ø piston pin (B): 10 mm · Piston weight: 76 g

Olympia 43 mm piston (12 mm KoBo) | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: Olympia · Ø outside piston (A): 42.91 mm · Compression height (C): 26 mm · Curvature (D): 2.7 mm · Total piston height (E): 51.3 mm · Number of piston rings (F): 2 pcs · Piston ring mold: Rectangular ring · Nominal diameter: 43 mm · Piston ring impact: Internal fuse (IS) · Piston ring height: 1.5 mm · Ø piston pin (B): 12 mm · Piston weight: 99 g

Olympia 38.4 mm piston (12 mm KoBo) | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: Olympia · Ø outside piston (A): 38.34 mm · Compression height (C): 26.4 mm · Curvature (D): 3.6 mm · Total piston height (E): 51.9 mm · Number of piston rings (F): 2 pcs · Piston ring mold: L-ring · Piston ring mold: Rectangular ring · Nominal diameter: 38.4 mm · Piston ring impact: Flank safety device (FS) · Piston ring impact: Internal fuse (IS) · Ø piston pin (B): 12 mm

Olympia 43 mm piston (10 mm KoBo) | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: Olympia · Ø outside piston (A): 42.91 mm · Compression height (C): 26 mm · Curvature (D): 2.7 mm · Total piston height (E): 51.3 mm · Number of piston rings (F): 2 pcs · Piston ring mold: Rectangular ring · Nominal diameter: 43 mm · Piston ring impact: Internal fuse (IS) · Piston ring height: 1.5 mm · Ø piston pin (B): 10 mm · Piston weight: 85 g

Athena piston 43mm (10 mm KoBo) #A | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: Athena · Nominal diameter: 43 mm · Ø outside piston (A): 42.9 mm · Compression height (C): 26.52 mm · Curvature (D): 2.4 mm · Total piston height (E): 50.4 mm · Number of piston rings (F): 2 pcs · Piston ring mold: Rectangular ring · Piston ring impact: Flank safety device (FS) · Piston ring height: 1.5 mm · Ø piston pin (B): 10 mm · Tolerance group: A · Piston weight: 87 g

Athena piston 43 mm (12 mm KoBo) #A | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: Athena · Nominal diameter: 43 mm · Ø outside piston (A): 42.93 mm · Compression height (C): 26.25 mm · Curvature (D): 4 mm · Total piston height (E): 52.6 mm · Number of piston rings (F): 2 pcs · Piston ring mold: L-ring · Piston ring mold: Rectangular ring · Piston ring impact: Flank safety device (FS) · Piston ring impact: Internal fuse (IS) · Piston ring height: 2 mm · Ø piston pin (B): 12 mm · Tolerance group: A

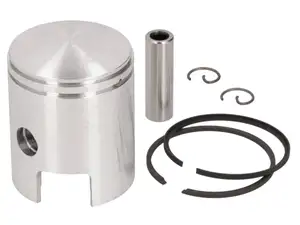

Piston 41 mm (10 mm KoBo) | Piaggio

Ø outside piston (A): 40.95 mm · Compression height (C): 26.2 mm · Curvature (D): 2.3 mm · Total piston height (E): 50.55 mm · Number of piston rings (F): 2 pcs · Piston ring mold: L-ring · Piston ring mold: Rectangular ring · Nominal diameter: 41 mm · Piston ring impact: Flank safety device (FS) · Piston ring impact: Internal fuse (IS) · Piston ring height: 1.5 mm · Piston ring height: 2 mm · Ø piston pin (B): 10 mm

Athena piston 46 mm (10 mm KoBo) | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: Athena · Ø outside piston (A): 45.93 mm · Compression height (C): 26 mm · Curvature (D): 2.92 mm · Total piston height (E): 51 mm · Number of piston rings (F): 2 pcs · Piston ring mold: L-ring · Piston ring mold: Rectangular ring · Nominal diameter: 46 mm · Piston ring impact: Internal fuse (IS) · Piston ring height: 1.5 mm · Piston ring height: 2 mm · Ø piston pin (B): 10 mm · Piston weight: 94 g

Athena piston 45.9 mm (12 mm KoBo) #A | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: Athena · Ø outside piston (A): 45.93 mm · Compression height (C): 26.05 mm · Curvature (D): 3 mm · Total piston height (E): 51.05 mm · Number of piston rings (F): 2 pcs · Piston ring mold: L-ring · Piston ring mold: Rectangular ring · Nominal diameter: 46 mm · Piston ring impact: Internal fuse (IS) · Piston ring height: 1.5 mm · Piston ring height: 2 mm · Ø piston pin (B): 12 mm · Tolerance group: A · Piston weight: 96 g

Athena gasket set 46 mm cylinder | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: Athena · Ø cylinder: 46 mm · Area of application: Tuning · Decompressor: Yes · Number of components: 2 pcs

Gasket cylinder base aluminum original | Piaggio Ciao, SI, Bravo, Boxer

Place of use: Cylinder base · Thickness: 0.25 mm · Material: Aluminum · Area of application: Original

Gasket cylinder head 43 mm aluminum | Piaggio Ciao, SI, Bravo Boxer

Place of use: Cylinder head · Thickness: 0.4 mm · Material: Aluminum · Ø cylinder: 41 - 43 mm

Olympia / DR piston rings 38.4x1.5 mm (pair) | Piaggio Ciao, SI, Bravo, Boxer

Height: 1.5 mm · Manufacturer: Olympia · Nominal diameter: 38.4 mm · Piston ring impact: Flank safety device (FS) · Piston ring impact: Internal fuse (IS)

Meteor piston KAT 38.2 - 40.2 mm (10 mm KoBo) | Piaggio Ciao, SI

Manufacturer: Meteor · Ø outside piston (A): 38.2 mm · Ø outside piston (A): 38.4 mm · Ø outside piston (A): 38.6 mm · Ø outside piston (A): 38.8 mm · Ø outside piston (A): 39 mm · Ø outside piston (A): 39.2 mm · Ø outside piston (A): 39.4 mm · Ø outside piston (A): 39.6 mm · Ø outside piston (A): 39.8 mm · Ø outside piston (A): 40 mm · Ø outside piston (A): 40.2 mm · Number of piston rings (F): 2 pcs · Piston ring mold: L-ring · Piston ring mold: Rectangular ring · Piston ring impact: Flank safety device (FS) · Piston ring impact: Internal fuse (IS) · Nominal diameter: 38.2 mm · Nominal diameter: 38.4 mm · Nominal diameter: 38.6 mm · Nominal diameter: 38.8 mm · Nominal diameter: 39 mm · Nominal diameter: 39.2 mm · Nominal diameter: 39.4 mm · Nominal diameter: 39.6 mm · Nominal diameter: 39.8 mm · Nominal diameter: 40 mm · Nominal diameter: 40.2 mm · Ø piston pin (B): 10 mm
