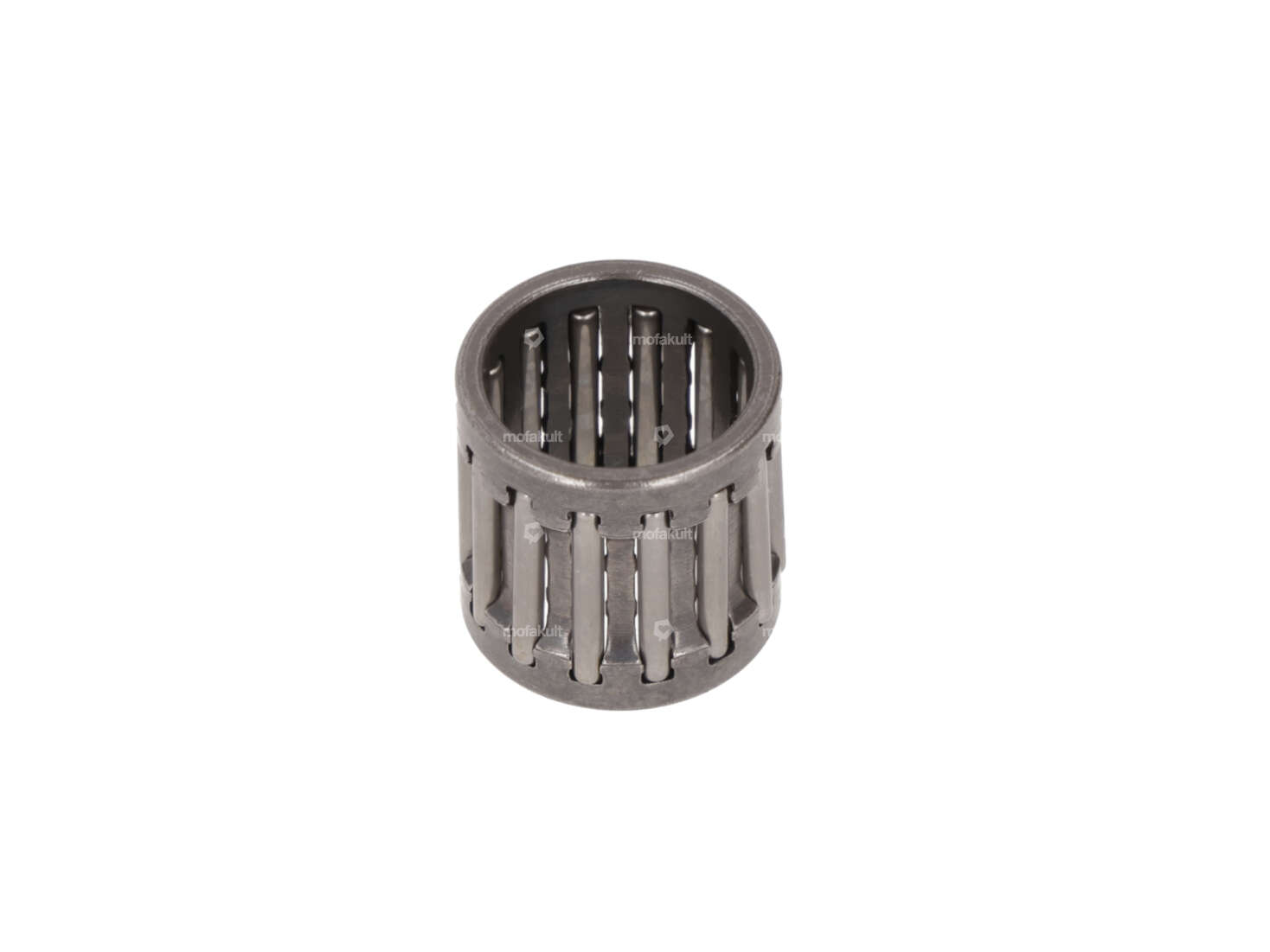

Mazzucchelli needle bearing 12/15/15 piston pin | Piaggio Ciao, SI, Bravo, Boxer

Jasil crankshaft "Racing" 12 mm KoBo | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: Jasil · Cheek type: standard · Crankshaft stroke: 43 mm · Ø coupling pin / vario pin: 12 mm · Connecting rod length center-center: 87 mm · Total length crankpin ignition side: 91.5 mm · Ø piston pin (B): 12 mm · Ø Connecting rod eye: 15 mm · Ø Bearing seat (clutch side): 15 mm · Ø Bearing seat (ignition side): 15 mm · Thread type: M8x1.25 (standard thread) · Dimension needle bearing: 12 / 15 x 14.7 mm (axe 12) · Wide crank webs: 32.9 mm · Length 1st paragraph: 21.5 mm · Length 2nd paragraph: 44 mm · Length 3rd paragraph: 64.9 mm · Number of gears: 1 pcs · Area of application: Racing

Malossi piston 43 mm (12 mm KoBo) old version | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: Malossi · Nominal diameter: 43 mm · Ø outside piston (A): 42.92 mm · Ø piston pin (B): 12 mm · Compression height (C): 26.1 mm · Curvature (D): 4.7 mm · Total piston height (E): 52.8 mm · Number of piston rings (F): 2 pcs · Piston ring mold: Rectangular ring · Piston ring impact: Internal fuse (IS) · Piston ring height: 1.5 mm · Piston weight: 90 g

Polini 46 mm piston (12 mm KoBo) | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: Polini · Nominal diameter: 46 mm · Ø outside piston (A): 45.94 mm · Ø piston pin (B): 12 mm · Compression height (C): 26 mm · Curvature (D): 2.7 mm · Total piston height (E): 50.7 mm · Number of piston rings (F): 2 pcs · Piston ring mold: Rectangular ring · Piston ring impact: Flank safety device (FS) · Piston ring height: 1.5 mm

Athena crankshaft "Racing" 12 mm KoBo | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: Athena · Cheek type: standard · Crankshaft stroke: 43 mm · Ø coupling pin / vario pin: 12 mm · Connecting rod length center-center: 85 mm · Total length crankpin ignition side: 91.6 mm · Ø piston pin (B): 12 mm · Ø Connecting rod eye: 15 mm · Ø Bearing seat (clutch side): 15 mm · Ø Bearing seat (ignition side): 15 mm · Thread type: M8x1.25 (standard thread) · Dimension needle bearing: 12 / 15 x 14.7 mm (axe 12) · Wide crank webs: 33 mm · Length 1st paragraph: 21.9 mm · Length 2nd paragraph: 43.2 mm · Length 3rd paragraph: 63.5 mm · Number of gears: 1 pcs · Area of application: Racing

Pinasco 46 mm cylinder kit EVOTEN BIG 12 mm KoBo | Piaggio Ciao, SI, Bravo, Boxer

Nominal diameter: 46 mm · Manufacturer: Pinasco · Material: Aluminum · Area of application: Tuning · Surface: varnished · Crankshaft stroke: 43 mm · Displacement: 71 ccm · Number of fixing points: 3 pcs · Ø cylinder neck: 49.9 mm · Ø Outlet outside: 22.5 mm · Ø Outlet outside: 25 mm · Ø Outlet outside: 28 mm · Ø outlet inside: 18.5 mm · Ø outlet inside: 20.9 mm · Ø outlet inside: 24.4 mm · Ø piston pin (B): 12 mm · Hole pattern [mm]: 55 x 34 · Outlet type: clamped · Outlet type: slanted · Hole spacing outlet: 47.5 mm · Thread outlet: M6x1 (standard thread) · Decompressor: Yes · Camouflaged: No

Mazzucchelli needle bearing 10/13/14.5 piston pin | Piaggio Ciao, SI, Bravo, Boxer

Bearing type: Needle roller and cage assembly · Ø inside: 10 mm · Dimension needle bearing: 10/13 x 14.5 · Ø outside: 13 mm · Manufacturer: Mazzucchelli · Width: 14.5 mm

GPO sprocket 14 teeth (wide) | Puch

Manufacturer: GPO · Surface: Hardened · Material: Steel · Chain pitch: 1/2" x 3/16" · Chain type: 415H · Number of teeth: 14 pcs · Recording type: Interlocking · Total thickness: 4.6 mm

swiing® revival stud bolt inlet/outlet M6 x 30 mm (10.9 strength)

Manufacturer: swiing® revival parts · Material: Steel · Surface: galvanized (blue) · Diameter: 5.95 mm · Thread length: 12 mm · Total length: 30 mm · Thread type: M6x1 (standard thread) · Strength class: 10.9

Sliding bush fork original | Puch

Ø inside: 23 mm · Manufacturer: Made in Italy · Material: Plastic · Surface: raw · Color: white · Total length: 30 mm · Ø outside: 27 mm

swiing® revival wheel bearing 25/37/6.3 coaster wheel

Bearing type: Ball ring · Stock number: K042 · Ø inside: 25 mm · Inner ring width: 25 mm · Ball bearing closed: No · Manufacturer: swiing® revival parts · Bearing cage: "-" Sheet steel cage ball-guided · Ø ball: 6.34 mm · Groove ring: No · Material: Steel · Ø outside: 36 mm · Width: 6.8 mm · Area of application: Standard

GPO mudguard strut silver | Puch Maxi S, N

Manufacturer: GPO · Material: Steel · Surface: varnished · Color: silver · Wheel size [inch]: 17 " · Total length: 240 mm · Distance mudguard - center hole: 197 mm · Distance mudguard - center hole: 231 mm · Outer width: 25.5 mm · Mounting type: Nuts & bolts · Number of fixing points: 8 pcs · Hole spacing: 40 mm · Ø mounting hole: 6 mm · Wide intake: 53 mm

swiing® revival screw set frame Inox | Puch Maxi N

Manufacturer: swiing® revival parts · Material: Chrome steel (known as Nirosta®) · Surface: stainless · Area of application: Standard

GPO side bars chrome | Puch Maxi N

Material: Steel · Surface: chrome-plated · Color: Chrome · Total length: 360 mm · Width: 140 mm · Height: 60 mm · Manufacturer: GPO · Mounting type: Screws · Number of fixing points: 2 pcs · Hole spacing: 342 mm · Ø mounting hole: 8.1 mm

Metrakit gasket set 43.5 mm

Manufacturer: Metracite · Number of components: 5 pcs · Ø cylinder: 43.5 mm · Hole spacing inlet: 38 mm · Hole spacing outlet: 42 mm · Hole pattern [mm]: 44 x 44 mm · Area of application: Tuning

swiing® revival side protection screw set black | Puch Maxi S

Manufacturer: swiing® revival parts · Material: Plastic · Material: Steel · Surface: galvanized (blue) · Surface: raw · Color: silver · Drive: Slot · Drive: Triangular head · Thread type: M5x0.8 (standard thread) · Thread length: 35 mm · Thread length: 50 mm · Total length: 47 mm · Total length: 60 mm

Magura stop sleeve special Ø 5.5 mm

Manufacturer: Magura · Ø inside: 2.5 mm · Ø inside: 5.5 mm · Nominal diameter inside: 2.5 mm · Ø outside: 4 mm · Ø outside: 7 mm · Total length: 5 mm · Total length: 10 mm
