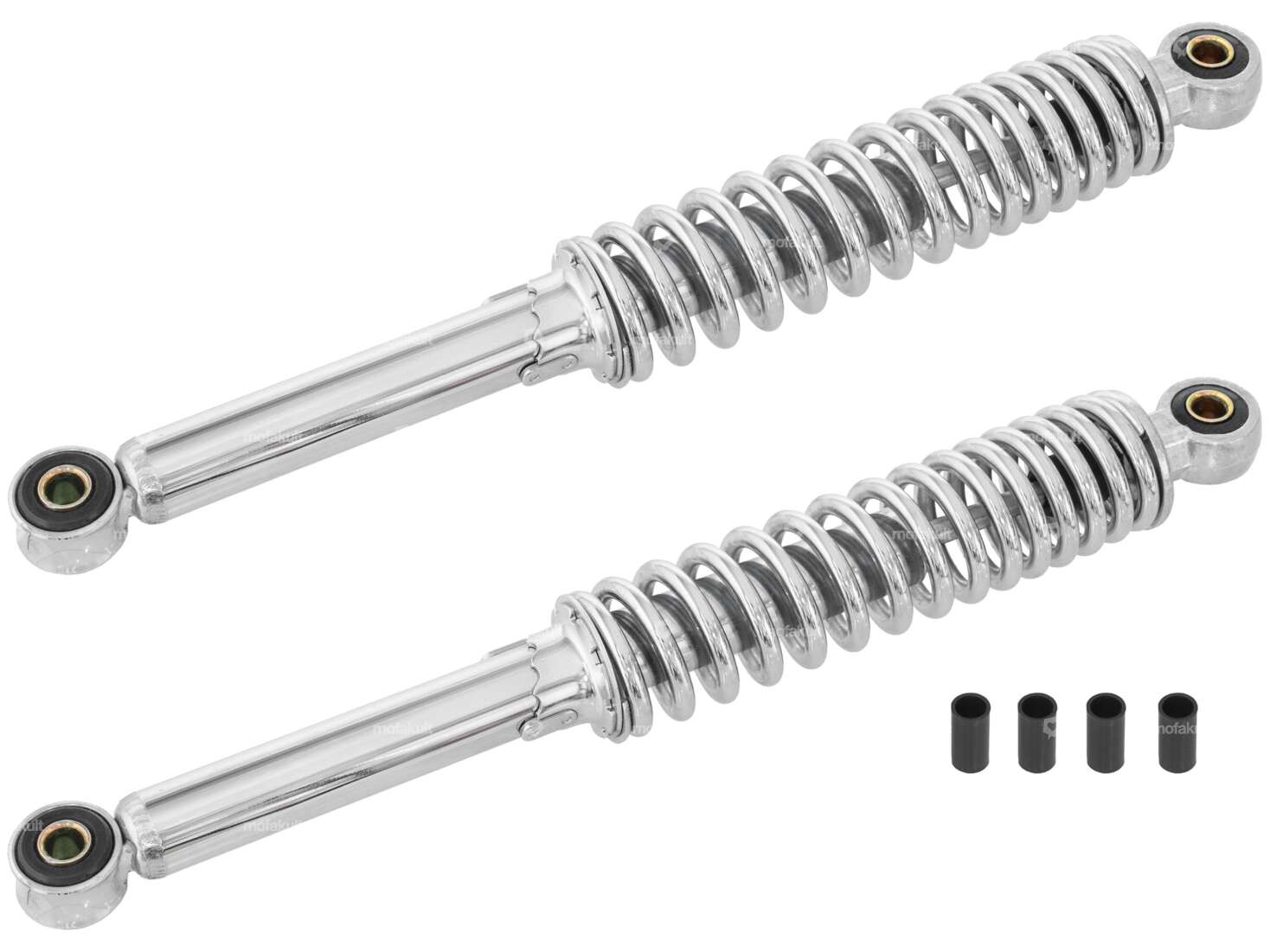

Chrome-plated, adjustable dampers for your moped, moped and small motorcycle.
The hardness or preload of the dampers can be adjusted in five stages thanks to the special spring mount.
Length (mount - mount): 360 mm
Outer diameter of coil spring: 46 mm
Holt diameter: 24 mm
Bush diameter for mounting: 10 / 8 mm
The diameter can be shortened from 10 mm to 8 mm at the mounting points using the plastic bushes supplied.
The rear springs should always be secured with large washers to prevent the plastic bushes from shifting if lateral forces occur.
The scope of delivery includes one pair.
Rear springs in other colors, the matching adjustment key, washers and fastening material can be found in the accessories section.
Suspension strut from the MKX-SHOCK brand.
Details
| Manufacturer | MKX |
| Ø outside | 46 mm |
| Total length | 360 mm |
| Surface | chrome-plated |
| Color | Chrome |
| Damping type | Spring |
| Adjustable | Yes |
| Ø spars | 24 mm |
| Ø Fastening inside | 8 mm, 10 mm |
| Number of fixing points | 2 pcs |
| Mounting type | Nuts & bolts |
