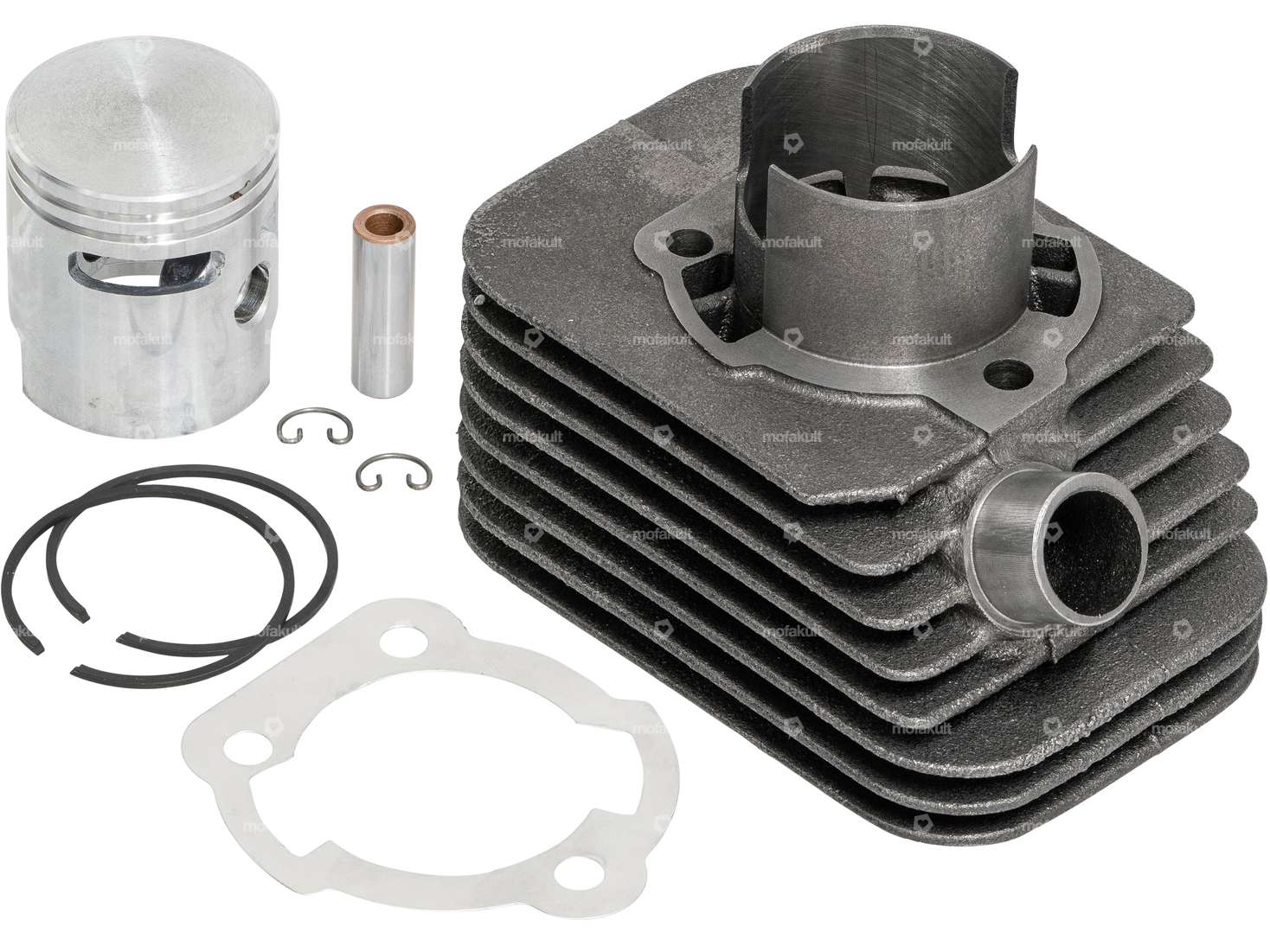

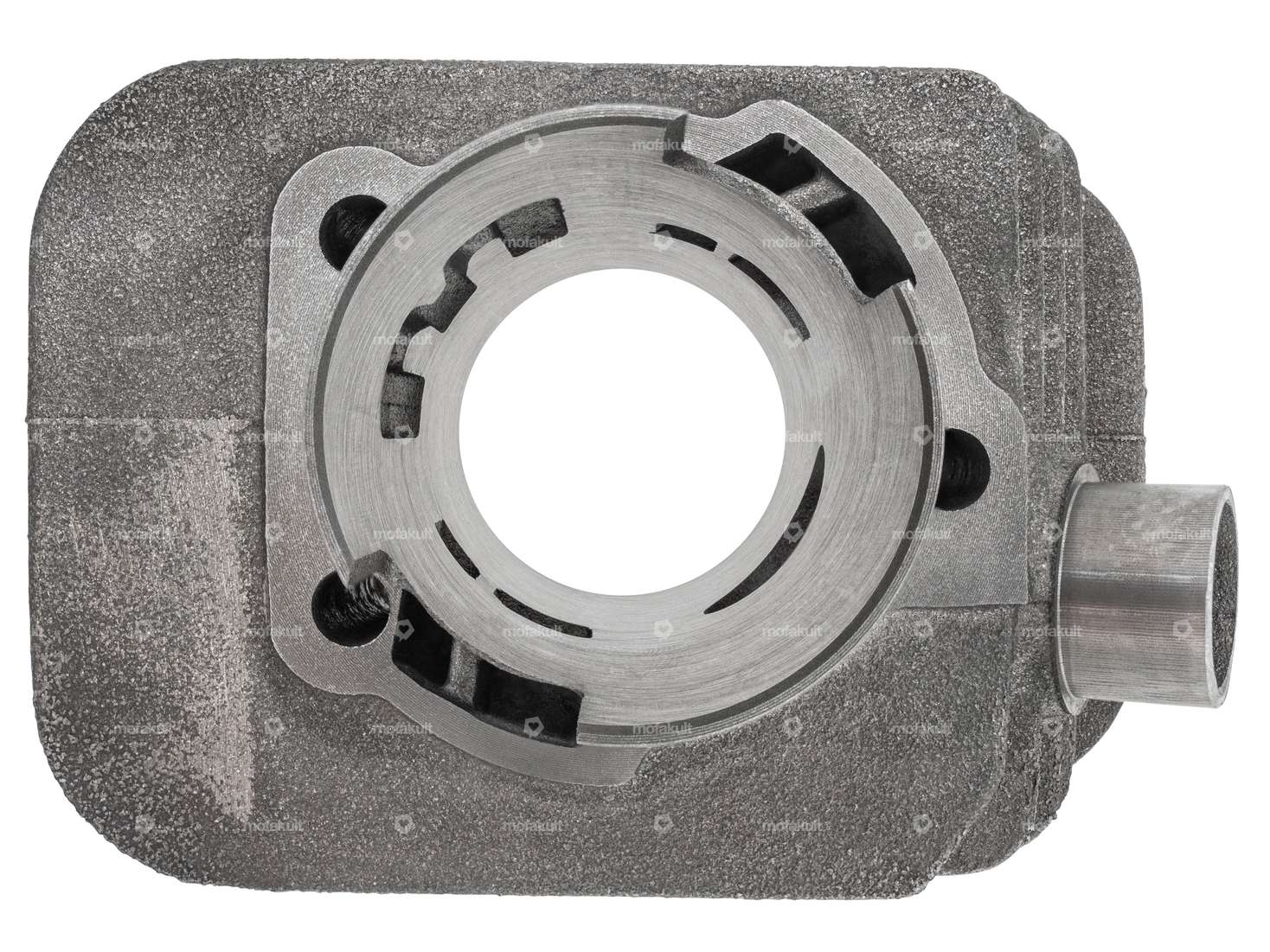

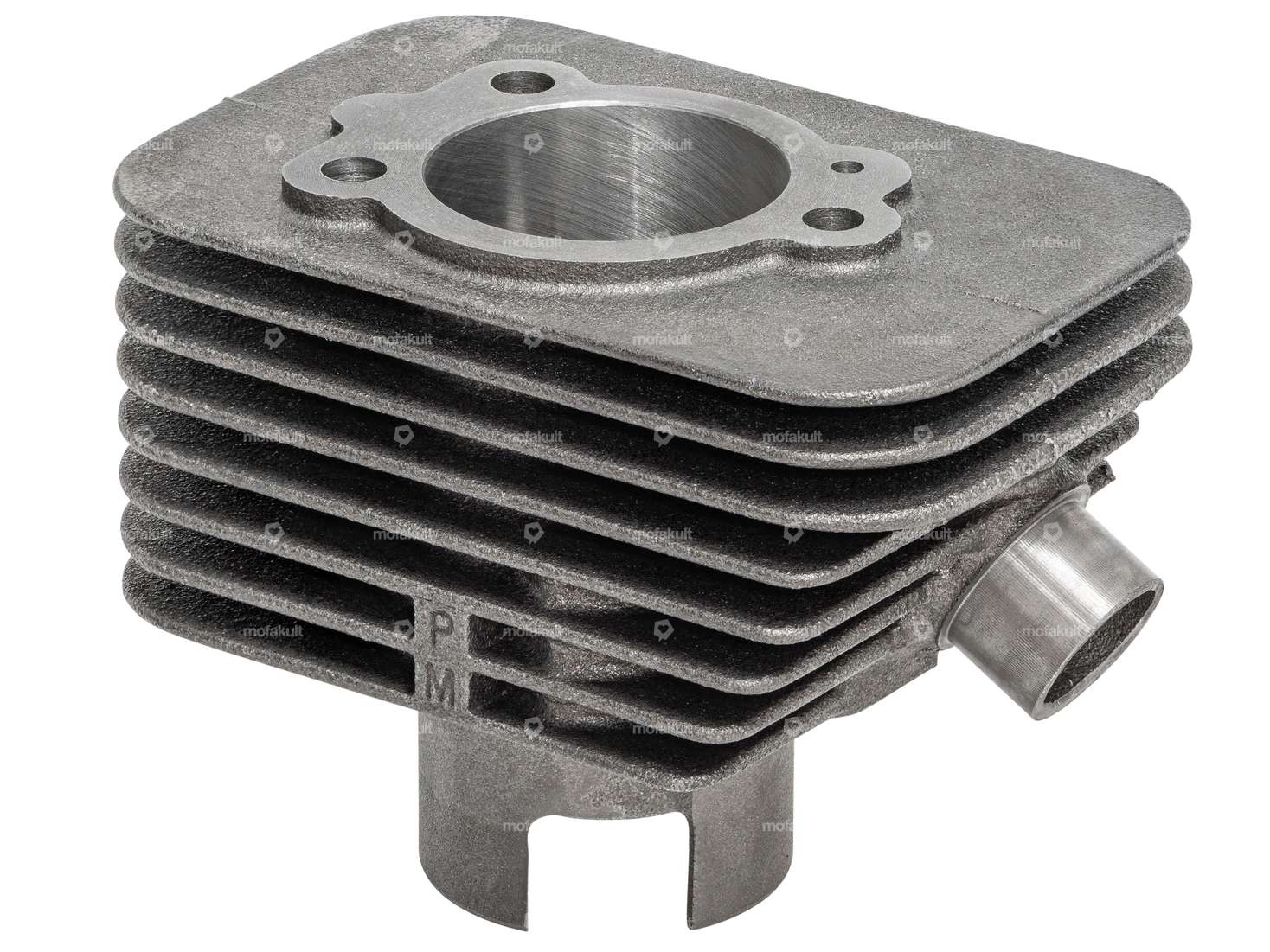

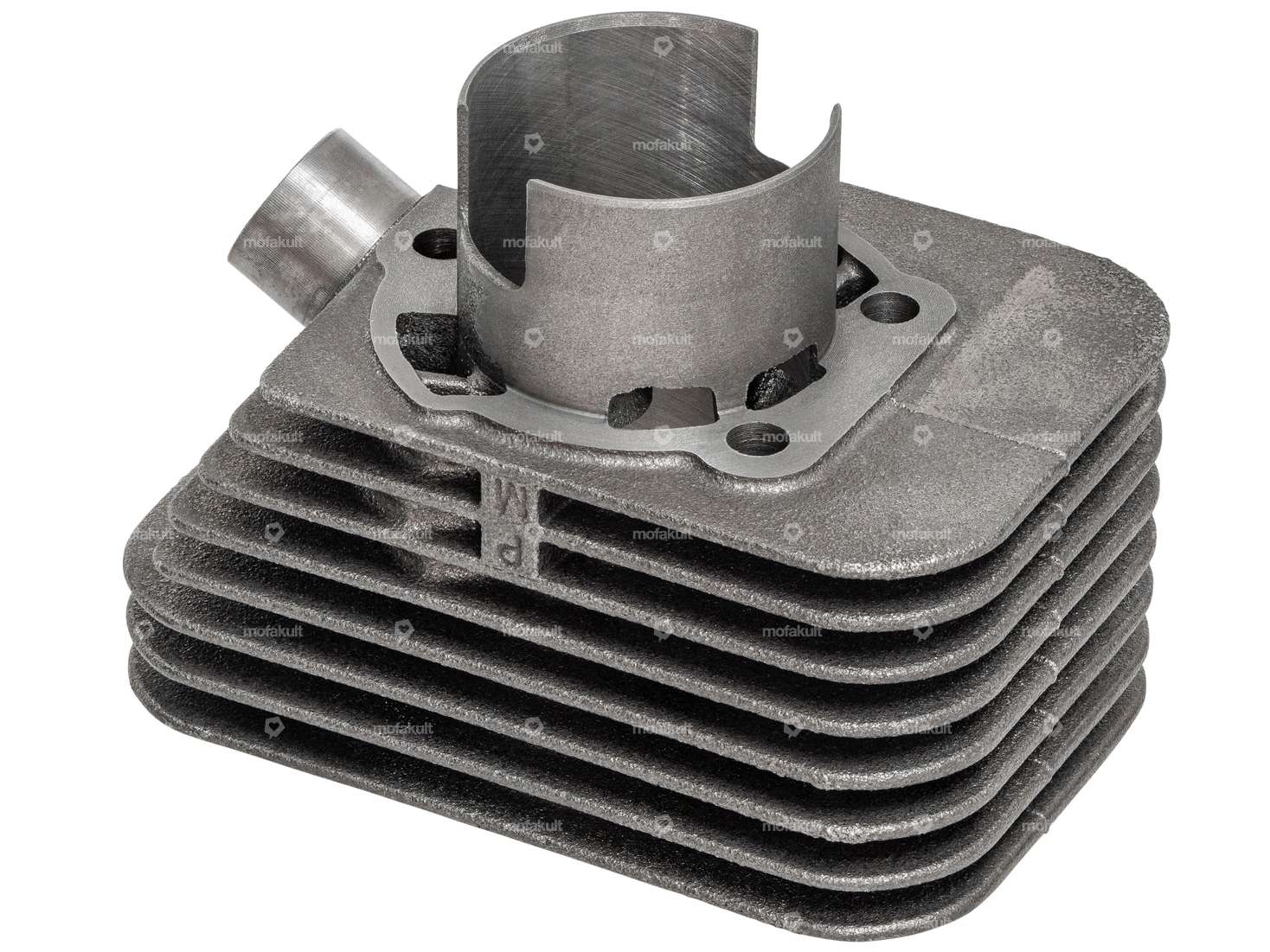

This cast iron cylinder, which is supplied without a cylinder head, fits all Piaggio mopeds.
Excellent workmanship and durability, combined with an exceptional price-performance ratio make this cylinder one of the most popular on the market.
The piston pin has a diameter of 10 mm.
We can also offer you this cylinder kit with cylinder head, or with 12 mm piston pin diameter.
Quality product from the Italian manufacturer Polini.
Details
| Nominal diameter | 43 mm |
| Manufacturer | Polini |
| Material | Gray cast iron |
| Displacement | 63 ccm |
| Crankshaft stroke | 43 mm |
| Surface | sandblasted |
| Ø cylinder neck | 45.8 mm |
| Ø Outlet outside | 22.6 mm |
| Ø outlet inside | 18.4 mm |
| Ø piston pin (B) | 10 mm |
| Area of application | Tuning |
| Hole pattern [mm] | 55 x 34 |
| Outlet type | clamped |
| Number of fixing points | 3 pcs |
| Decompressor | Yes |
| Camouflaged | No |
Suitable for the following models
| Piaggio | Ciao - P, SC, PX, C24 Si Bravo / Super Bravo Boxer Grillo |
