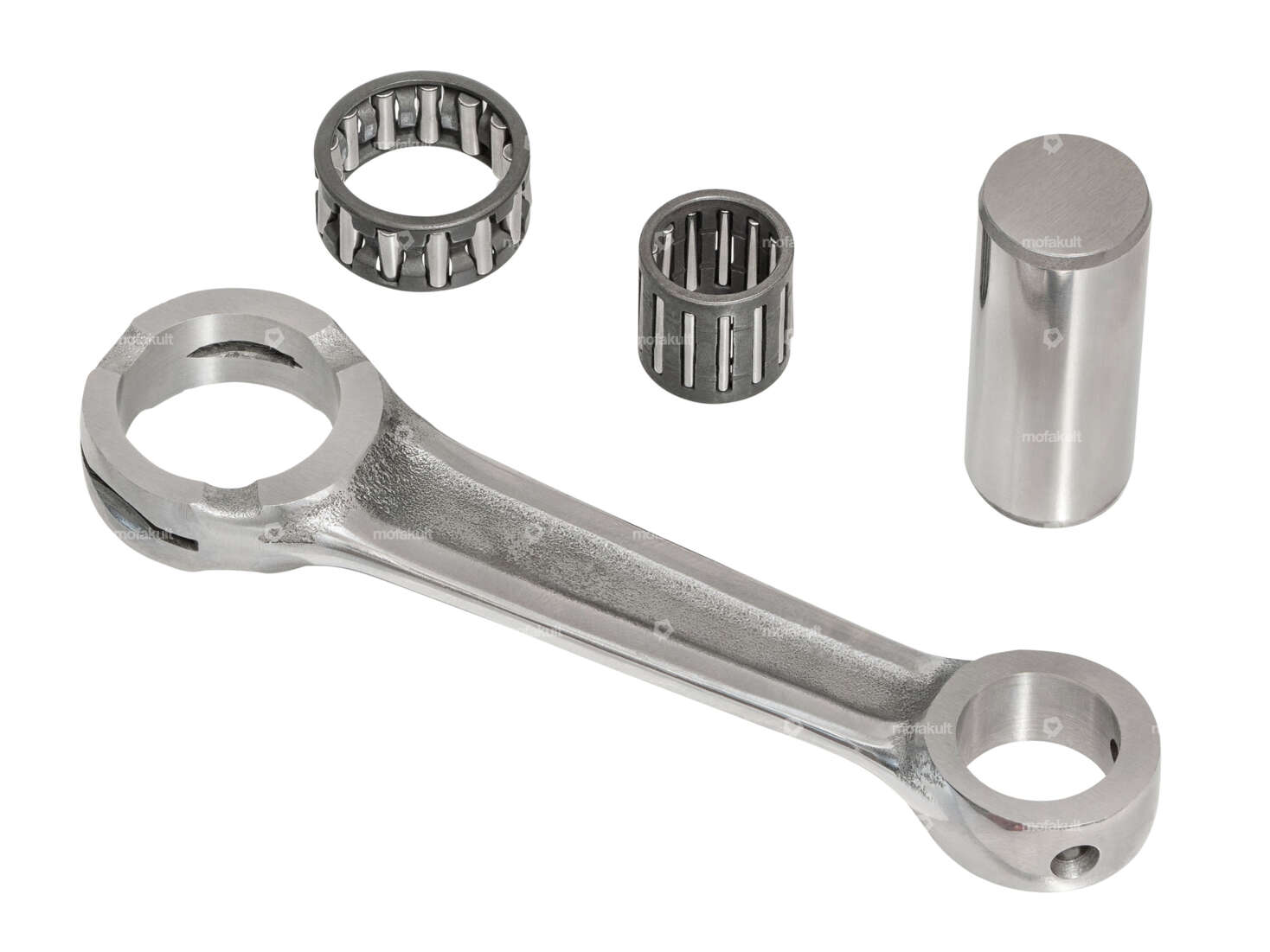

Complete connecting rod suitable for crankshafts of various mopeds / mopeds with Sachs engines.
The connecting rod is polished and fitted with a silver bearing, making it the perfect choice for racing use.
The silver-plated connecting rod bearing has the following advantages:
- Ölfilm adheres better to the surface
- Better heat dissipation
- Lower wear – properties
Dimension connecting rod:
- Dimension connecting rod pin: Ø 16 x 38.5 mm
- Connecting rod length (center – center): 85 mm
- Total connecting rod length: 110 mm
- Thickness: 10 mm
- Ø outside lower connecting rod eye: 28.2 mm
- Ø outside upper connecting rod eye: 21.6 mm
- Lower needle bearing (silver ball): Ø 21/16 x 9.7 mm
- Upper needle bearing: Ø 15/12 x 14.7 mm
- Ø for piston pin: 12 mm
Quality product from the Portuguese manufacturer Rito.
Details
| Thickness | 10 mm |
| Manufacturer | Rito |
| Area of application | Tuning, High End |
| Material | Steel |
| Surface | polished |
| Ø piston pin (B) | 12 mm |
| Connecting rod length center-center | 85 mm |
| Ø Connecting rod bolt | 16 mm |
| Ø lower connecting rod eye outside | 28.2 mm |
| Ø upper connecting rod eye outside | 21.6 mm |
| Total length | 110 mm |
| Ø lower bearing inside | 21 mm |
| Ø inside upper bearing | 15 mm |
| Dimension lower bearing | 16/21 x 9.7 mm |
| Dimension upper bearing | 12/15 x 14.7 mm |
| Connecting rod pin length | 38.5 mm |
Suitable for the following models
| Sachs | 50 (Fahrtwind, 1.25 / 1.5 hp, DE) 502 (Saxonette) - AL, AML 50/2 - L CH (0.8 PS), ML CH (0.8 PS), MB (2.6 PS), MLB (2.6 PS) 50/3 50/4 - MLFB (2.6 PS), LKH (4.5 PS) 50/5 503 - AAL, ABL, 2AL / 2BL, AB, AC, ADV 504 (without pedal shaft) 505 (with pedal shaft) - 1A (AT), 2A (HG) 508 - 1 A 535 |
Accessories & related products

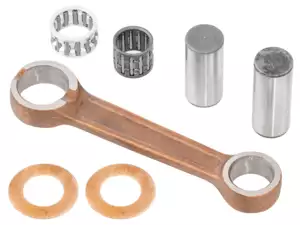

Jasil connecting rod axe 14 mm | Sachs
Manufacturer: Jasil · Material: Steel · Surface: copper-coated · Connecting rod length center-center: 85 mm · Total length: 107.4 mm · Ø piston pin (B): 12 mm · Ø Connecting rod bolt: 14 mm · Ø lower connecting rod eye outside: 24.75 mm · Ø upper connecting rod eye outside: 20.85 mm · Ø lower bearing inside: 18 mm · Ø inside upper bearing: 15 mm · Dimension lower bearing: 14/18 x 9.75 mm · Dimension upper bearing: 12/15 x 12.7 mm · Connecting rod pin length: 30.2 mm · Connecting rod pin length: 34.4 mm · Thickness: 10 mm · Area of application: Standard · Area of application: Tuning
EUR 78.40
Connecting rod aluminum | Sachs
Manufacturer: Sachs · Material: Aluminum · Surface: raw · Connecting rod length center-center: 85 mm · Total length: 118.5 mm · Ø piston pin (B): 12 mm · Ø Connecting rod bolt: 16 mm · Ø lower connecting rod eye outside: 39.4 mm · Ø upper connecting rod eye outside: 28.45 mm · Ø lower bearing inside: 21 mm · Ø inside upper bearing: 12 mm · Dimension lower bearing: 16/21 x 9.5 mm · Connecting rod pin length: 30 mm · Thickness: 10 mm · Area of application: Standard
EUR 96.50
Not in stock

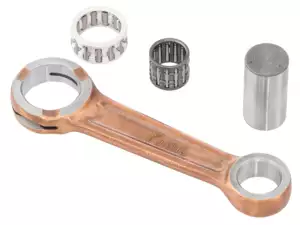

Jasil connecting rod axe 16 mm | Sachs
