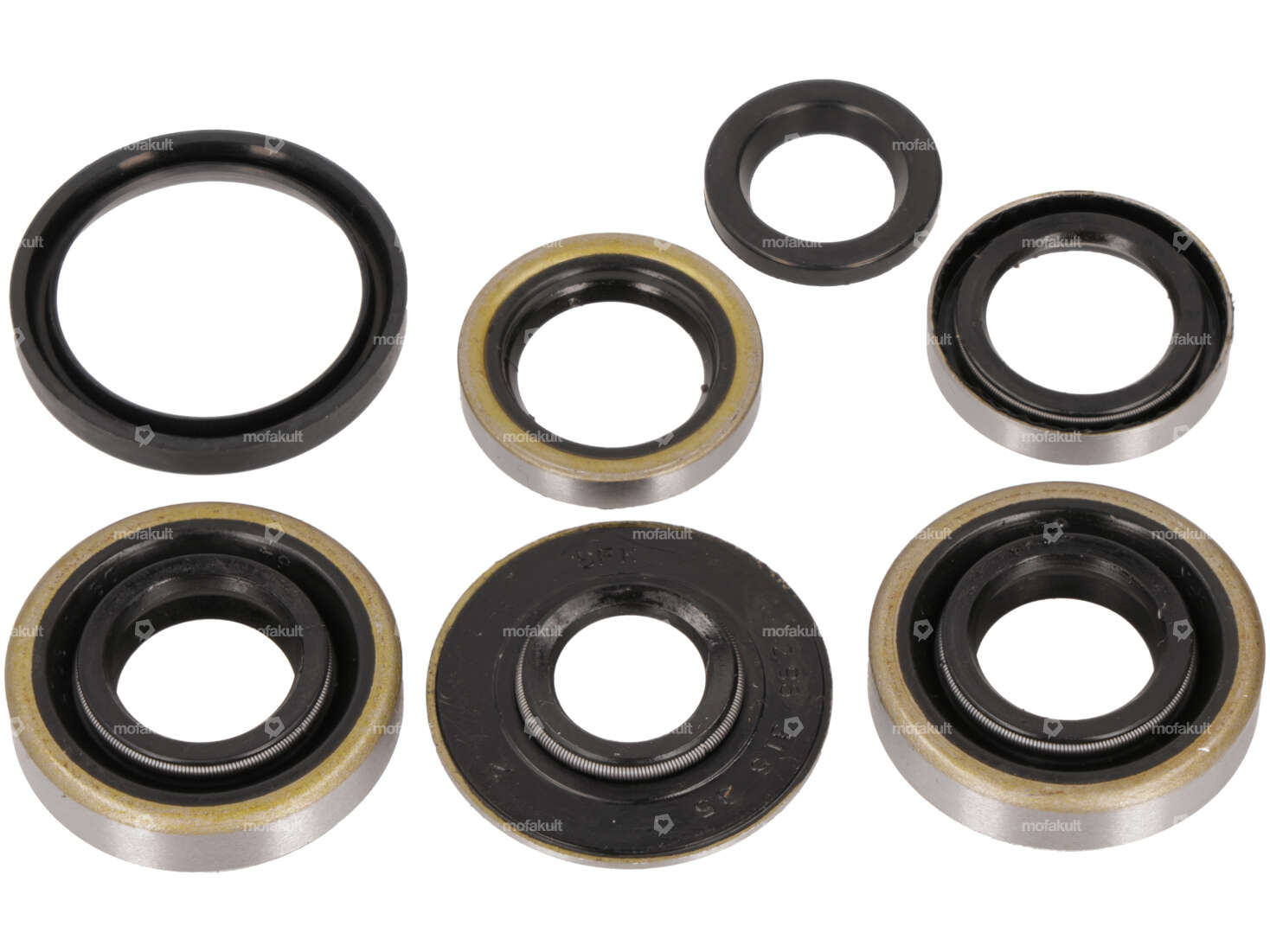

Complete shaft seal set suitable for Sachs 2-speed engines that have the pedal axle installed in the engine.
The set consists of seven oil seals (also known under the famous brand name Simmerring®):
- 15/30/7 B DUO - 2 pieces (crankshaft left & right)
- 16/24/4 - 2 pieces (pedal shaft left & brake shaft)
- 12.96/31.5/3.5 - 1 piece (pinion shaft)
- 31.4/24.8/4 - 1 piece (outer brake shaft)
- 12.8/19/2.5 - 1 piece (clutch lever)
The oil seal 12.8/19/2.5 for the shift shaft is not included, you can find it in the accessories section.
Single oil seals as well as tools and complete sets can be found in the accessories section.
Details
| Ø inside | 12.96 mm, 13.8 mm, 15 mm, 16 mm, 31.4 mm |
| Ø outside | 19 mm, 24 mm, 24.8 mm, 30 mm, 31.5 mm |
| Width | 2.5 mm, 3.5 mm, 4 mm, 7 mm |
Suitable for the following models
| Sachs | 50 (Fahrtwind, 1.25 / 1.5 hp, DE) |
Accessories & related products
Loctite 243 medium-strength threadlocker 10 ml
Manufacturer: Loctite · Area of application: Chemistry · Material to be used: Aluminum · Material to be used: Metal · Material to be used: Steel · Type of application: 1K · Color: blue · Contents [ml]: 10 ml · Hazard warning: Causes serious eye irritation · Hazard warning: Causes skin irritation · Hazard warning: Harmful to aquatic organisms (with long-term effects) · Hazard warning: May cause allergic skin reactions · Hazard warning: May irritate the respiratory tract · Signal word: Attention · Hazard pictogram: GHS07 - Caution dangerous · Hazard pictogram: GHS09 - Hazardous to the aquatic environment · Adhesion: medium strength · Temperature resistance (min.): -75 - 200 °C · Gap dimension (max.): 0.01 mm · Alignment time: 600 sec · Breakaway torque (according to material): 3 N/m · Breakaway torque (according to material): 12 N/m · Breakaway torque (according to material): 26 N/m
EUR 26.40
EUR 2’640.00/l
Oil seal NBR 15/30/7 B DUO | Sachs 50/2 / 503 (A1830)
Simmering type: B DUO - With sheet metal outer casing / two sealing lips. · Manufacturer: Sachs · Material: NBR · Width: 7 mm · Ø outside: 30 mm · Ø inside: 15 mm · Temperature resistance (min.): -30 - 100 °C · Pony OEM number: A1830 · Sachs OEM no.: 0250 090 000
EUR 6.55

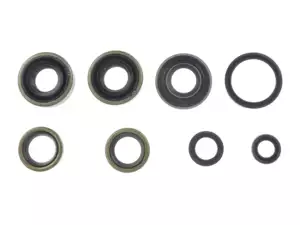

GPO oil seal set 3-speed pedal start | Sachs
Ø inside: 10 mm · Ø inside: 13 mm · Ø inside: 14 mm · Ø inside: 15 mm · Ø inside: 16 mm · Ø inside: 24 mm · Ø outside: 16 mm · Ø outside: 19 mm · Ø outside: 24 mm · Ø outside: 30 mm · Ø outside: 31.4 mm · Ø outside: 31.5 mm · Width: 2.5 mm · Width: 3.5 mm · Width: 4 mm · Width: 4.5 mm · Width: 7 mm · Manufacturer: GPO
EUR 36.10
Shaft seal NBR 16/24/4 A Pedal start mechanism | Sachs 50/2, 50/3, 50/4
Simmering type: A - With rubberized outer part / one sealing lip. · Manufacturer: Sachs · Material: NBR · Surface: rubberized · Ø outside: 24 mm · Width: 4 mm · Ø inside: 16 mm · Temperature resistance (min.): -30 - 100 °C
EUR 7.15
