For: Piaggio

30795

Spare parts catalog | Piaggio Ciao C7, C9

Home
| Workshop & standard parts
| Miscellaneous
| Literature & Posters
EUR 32.80

Incl. 25.5% VAT.

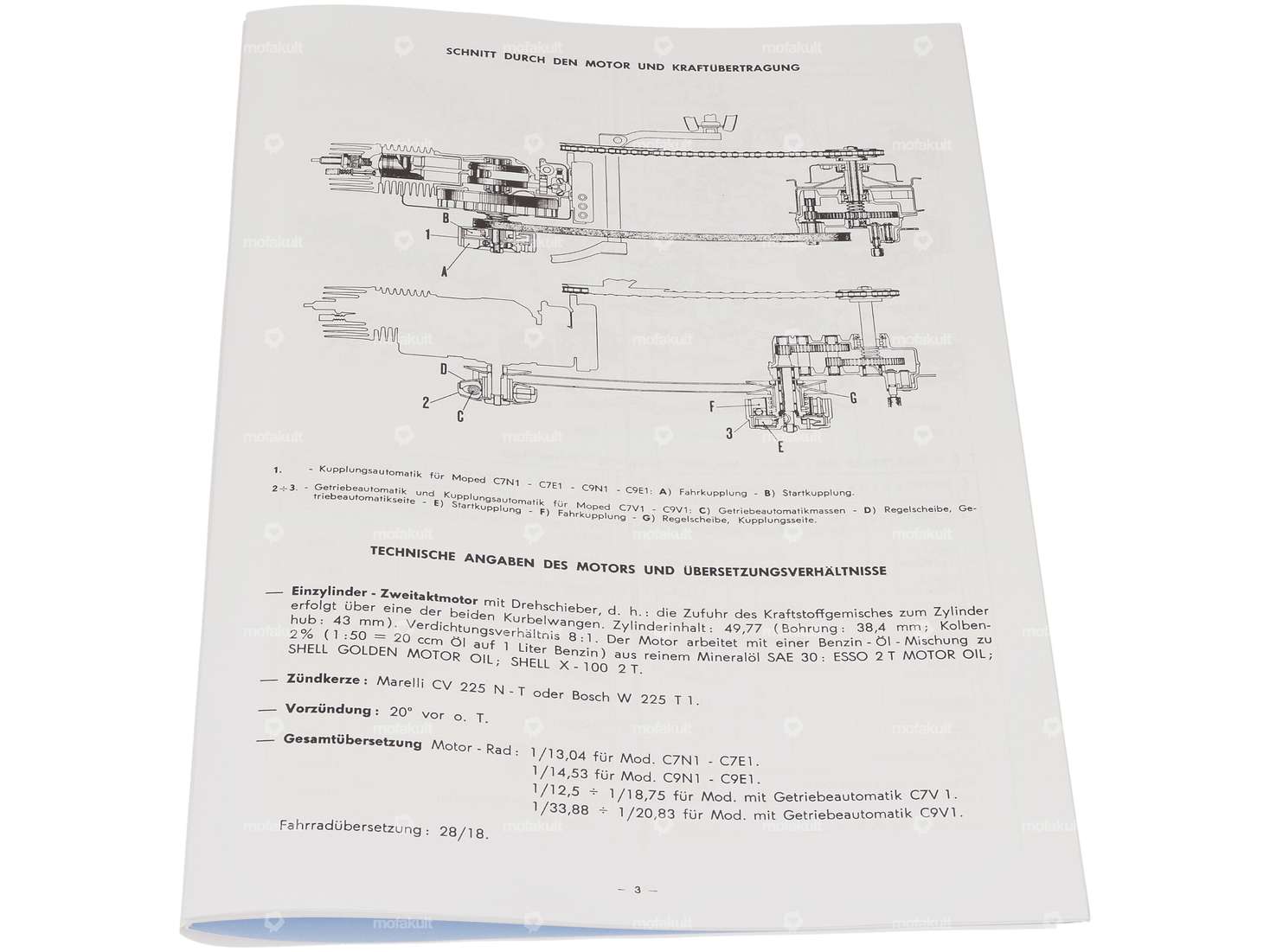

Spare parts catalog for the Ciao models C7 and C9 of the Italian Piaggio Vespa Gilera Bianchi Group. Each individual component is illustrated with the correct spare part number and installation location using numerous exploded views.

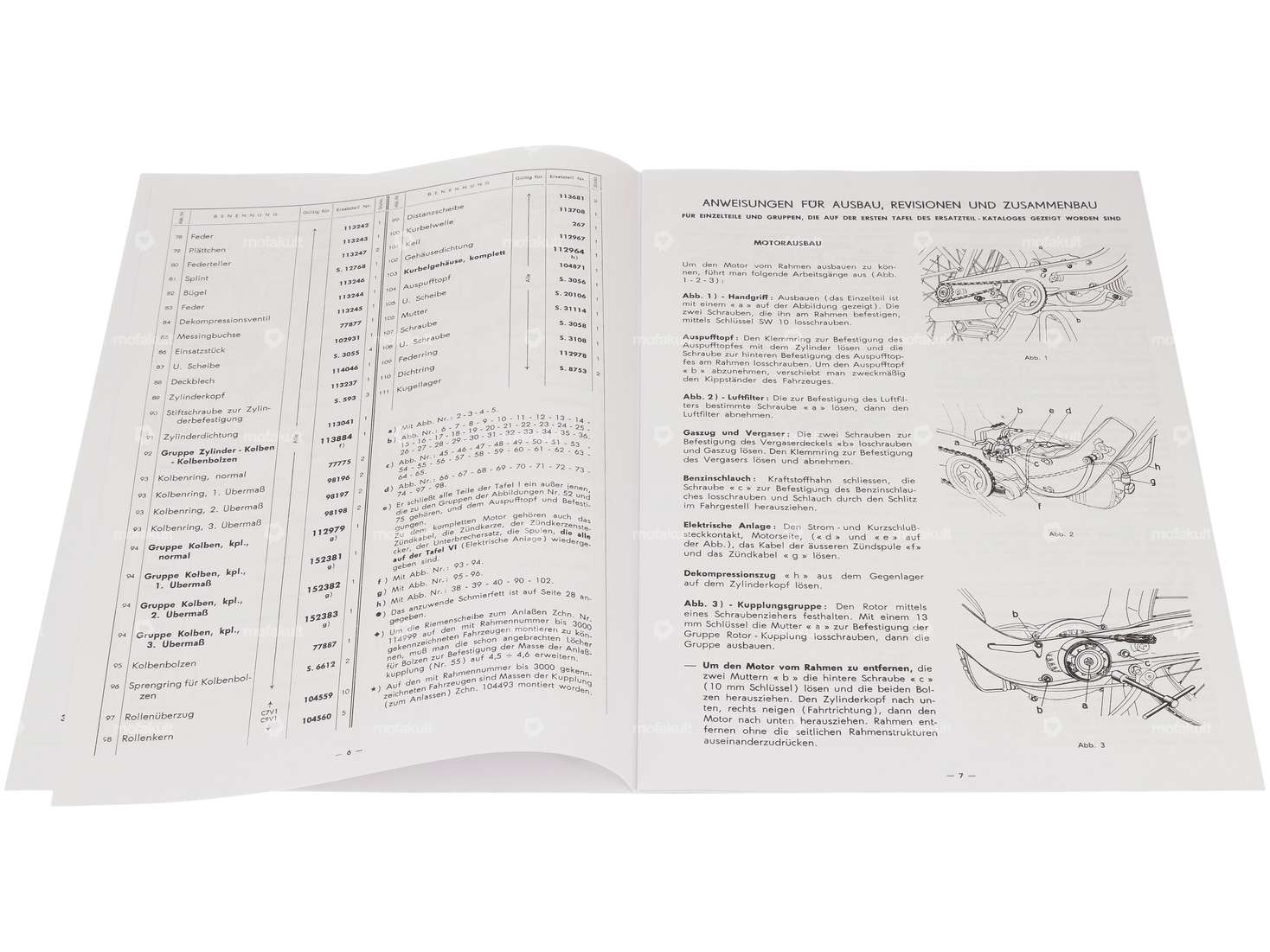

The catalog reprint also contains a workshop manual including the most important assembly and repair instructions, which makes troubleshooting much easier.

Format: A4 (210 x 297 mm)
Pages: 34
Language: German

High-quality facsimile (reproduction) of the original edition.

Further operating instructions, spare parts catalogs and repair manuals can be found under accessories.

Details

MaterialPaper
Width210 mm
Height297 mm
DIN formatA4
Number of pages34 pcs
LanguageGerman, English, French

Suitable for the following models

Piaggio

Ciao
