For: Puch

30782

Spare parts catalog | Puch Maxi Plus (CH)

Home
| Workshop & standard parts
| Miscellaneous
| Literature & Posters
EUR 48.60

Incl. 25.5% VAT.

Spare parts catalog (Switzerland) for the Puch Maxi Plus 1-speed automatic moped / moped.

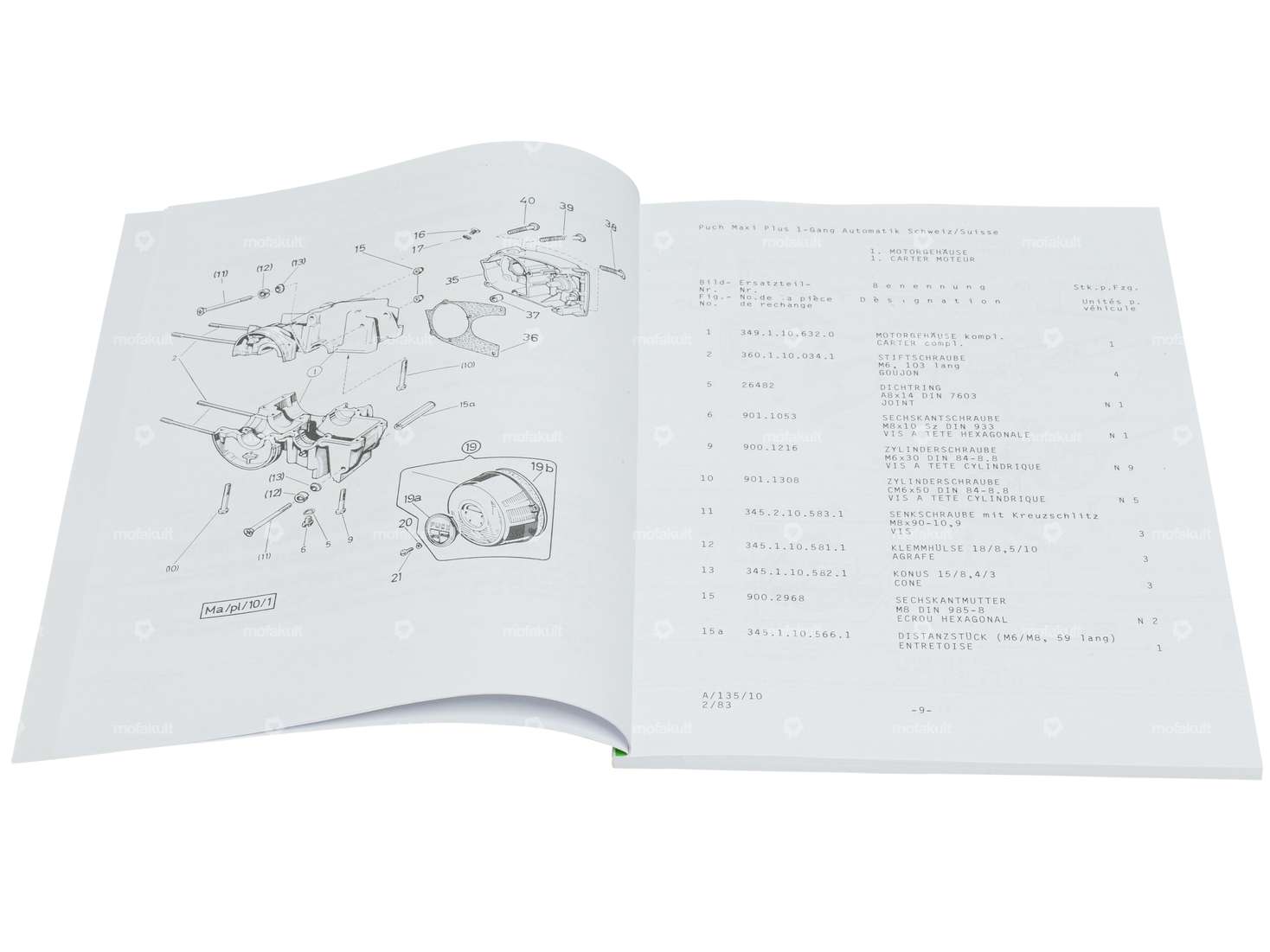

Each individual component is shown with the appropriate spare part number and the correct mounting location on the basis of many exploded drawings.

Format: A4 (210 x 297 mm)
Pages: 98
Language: German

High-quality facsimile (reproduction) of the original edition.

You can find more workshop manuals, operating and repair instructions in the accessories section.

Details

MaterialPaper
DIN formatA4
Number of pages50 pcs
LanguageGerman
Width210 mm
Height297 mm

Suitable for the following models

Puch

E50
