For: Sachs

34409

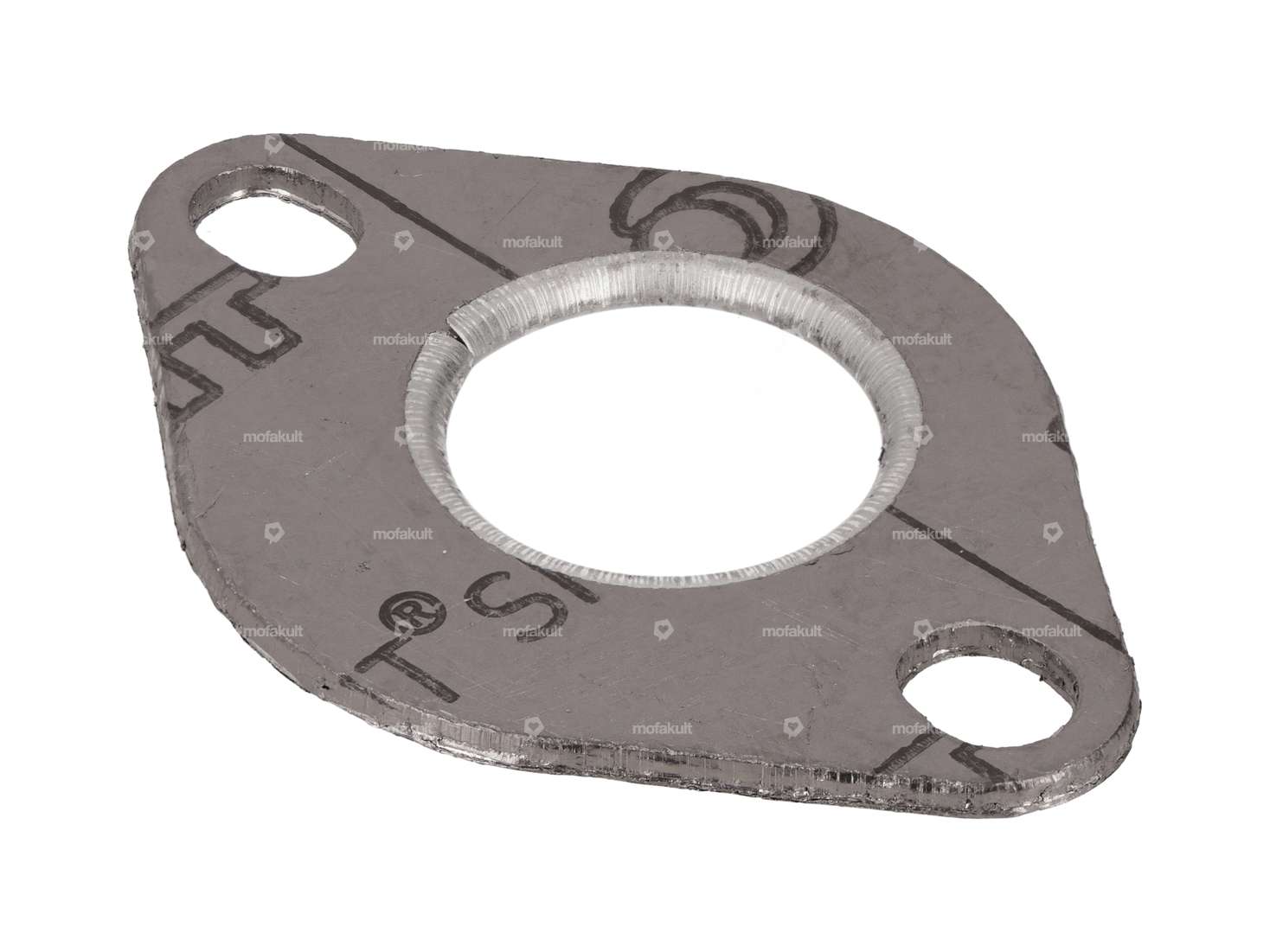

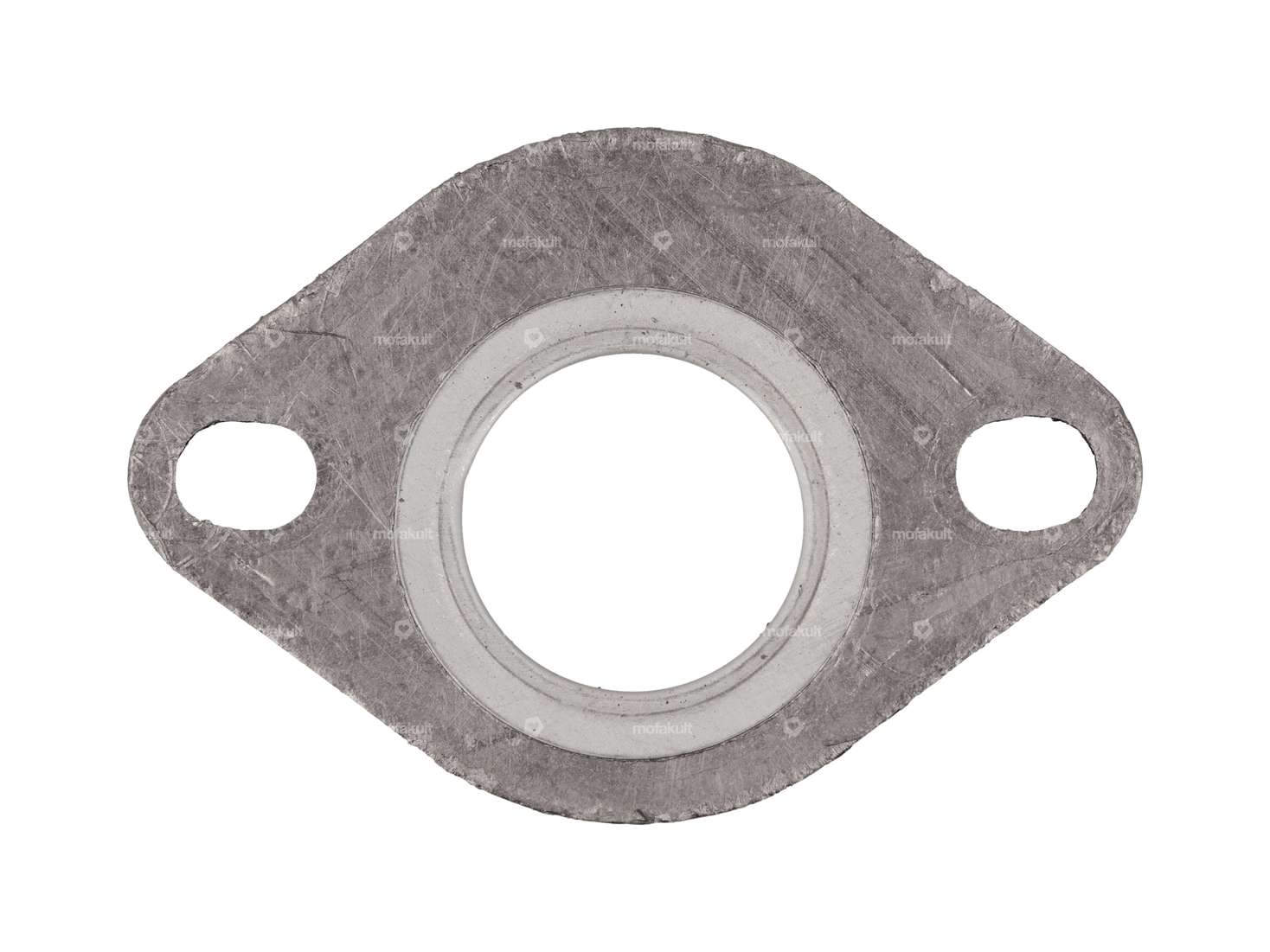

swiing® ingenious gasket outlet Ø 23 mm graphite | Sachs 503 AB, AC

Home
| Motor
| Exhaust system
| Gasket
EUR 10.80

Incl. 25.5% VAT.

Exhaust gasket for exhaust manifolds without guide collar on Pony mopeds / mopeds with Sachs 503 AB or AC engine.

Thanks to the eccentric shape of the gasket, the large sealing surface is fully utilized, which ensures an uncompromising seal. The metal ring pressed into the temperature-resistant graphite composite material increases the stability and extends the durability of the exhaust gasket.

The fit and finish are absolutely flawless. Thanks to the slots, the gasket can be fitted without any problems even if the stud bolts are slightly bent.

Note: The graphite expands with heat and therefore adapts to unevenness.
The gasket should only be fitted once, as it hardens after the expansion process.

Details

Manufacturerswiing® ingenious parts
MaterialGraphite / Graphite, Steel
Colorgray
Ø inside23 mm
Place of useOutlet
Thickness2 mm
Hole spacing48.5 - 51.5 mm
Number of fixing points2 pcs

Suitable for the following models

Sachs

503 - AB, AC
