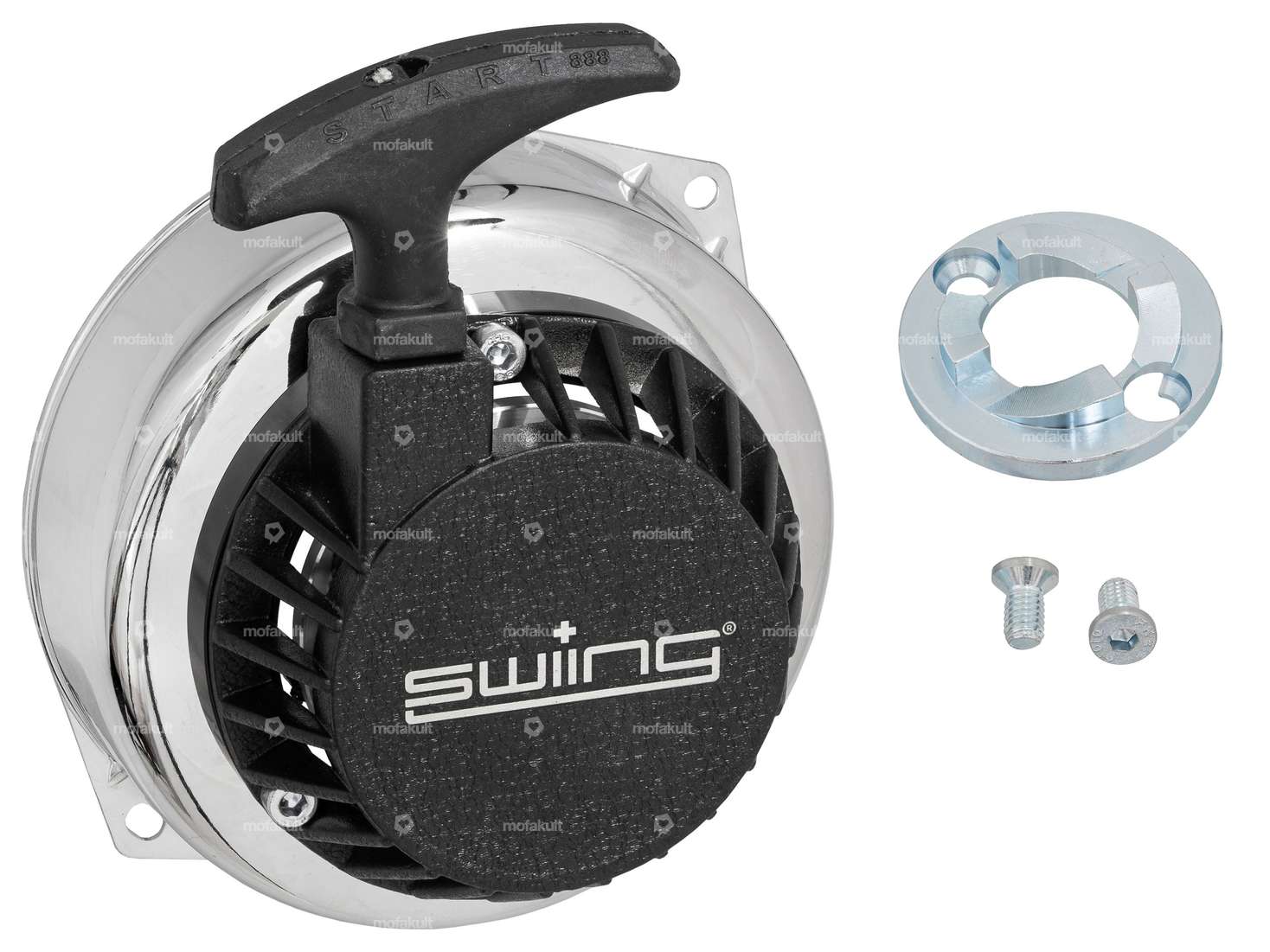

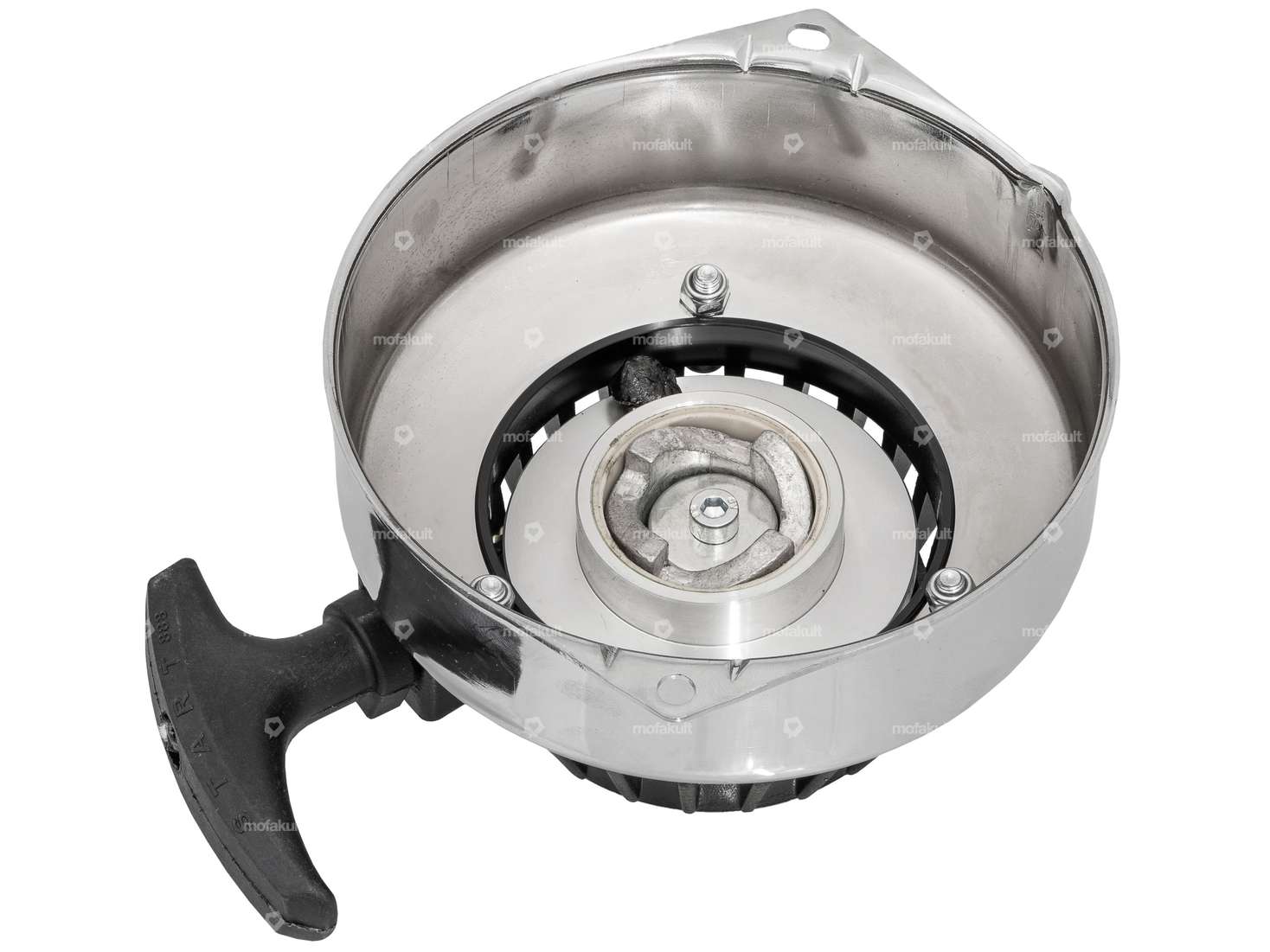

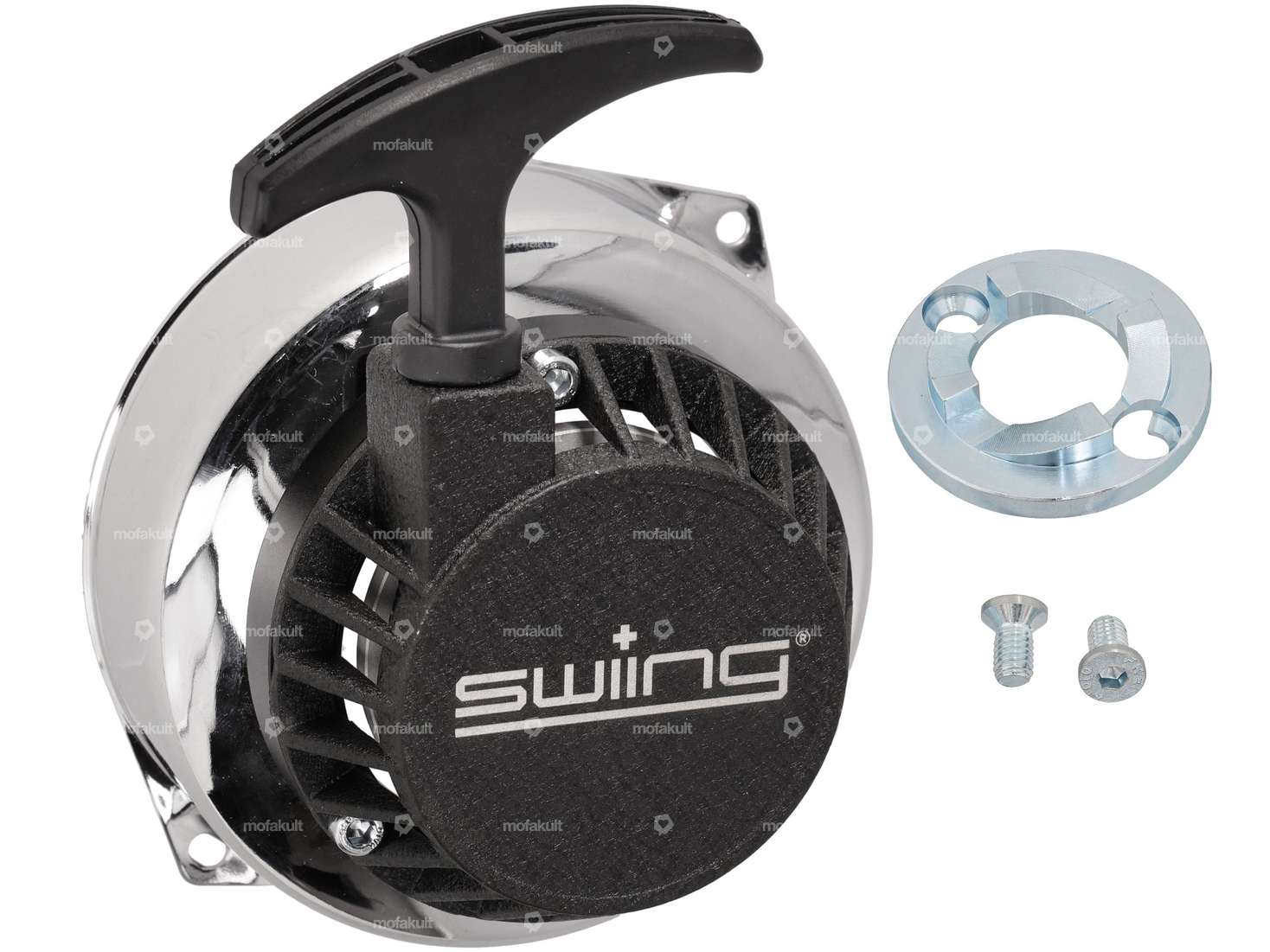

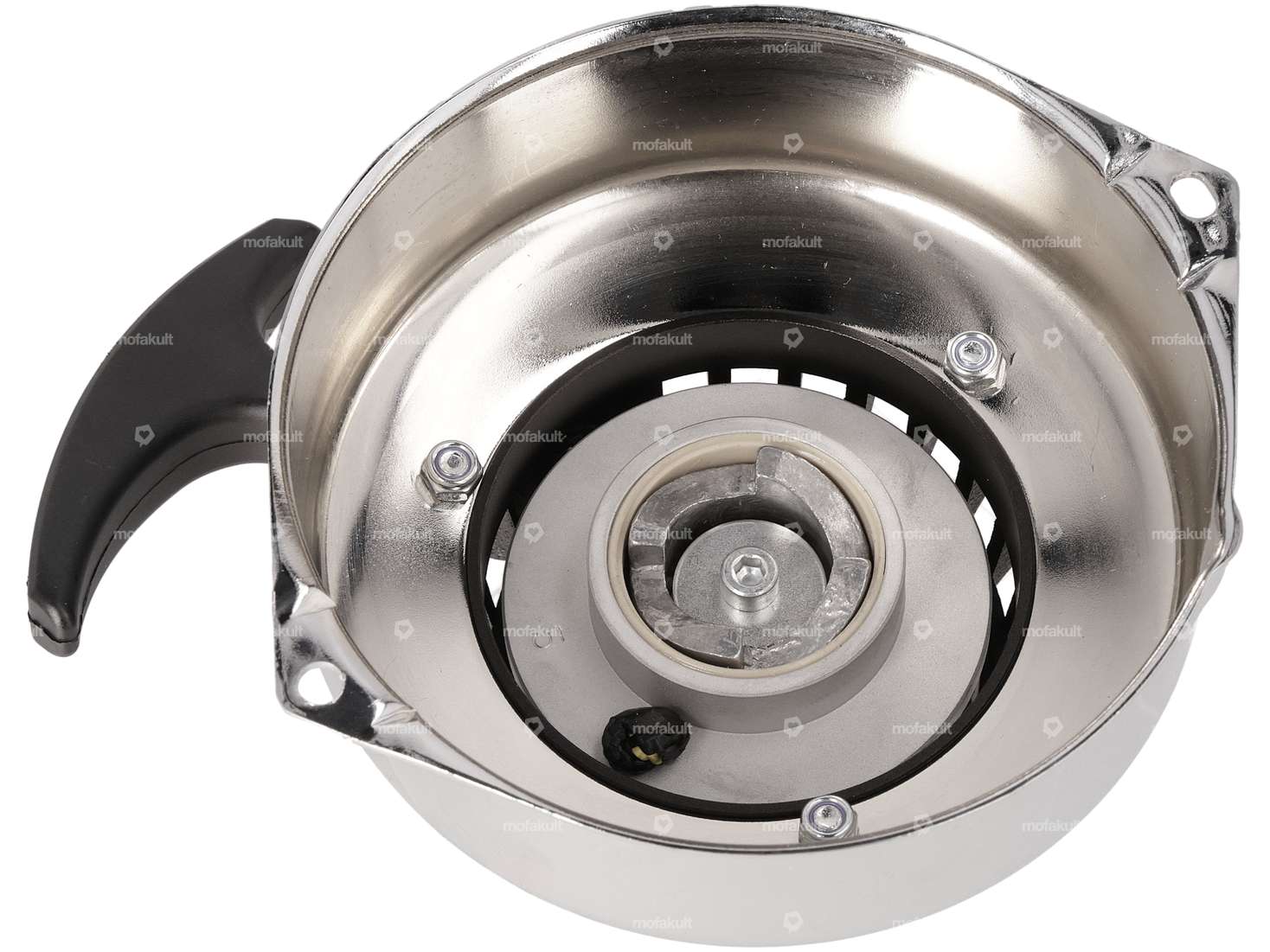

Ready-to-install rope starter for clockwise rotating Puch E50 engines on your Puch Maxi S / N or Puch Supermaxi LG1 moped / moped. Can only be fitted in conjunction with an MVT license plate.
Made in Switzerland. Designed for the highest loads and proven in racing.
Mounting:
Application:
Tip: Wear gloves! Hold the handle firmly.
Note: The pedal mechanism can no longer be operated as the pedal arms would come into contact with the housing of the pull starter. Therefore, footrests, a longer pedal axle or a pedal axle extension must be fitted.
Further helpful parts for the cable starter conversion such as Loctite, racing gloves, replacement cord, rubber hammer etc. can be found in the accessories section. You can find them in the accessories section.
Exceptional product for the highest demands of the quality brand swiing®.
Details
Manufacturer | swiing® ingenious parts |
Material | Steel, Plastic |
Surface | chrome-plated, raw |
Ignition system | MVT Allumage |
Ø outside | 130 mm |
Color | Chrome, black-matt |
Hole spacing | 138 mm |
Number of fixing points | 2 pcs |
Total length | 170 mm |
Width | 150 mm |
Height | 82 mm |
Suitable for the following models
Puch | E50 |
